Water Permeable Two Component Epoxy Resin Glue for Stone Mixing on Paving

Product Description Instruction  MTB-7910 UV Stable Resin bound and resin bonded surfacing combines attractive natural aggregate with highly durable resin to provide an exceptional surfacing system for commercial and domestic surfaces. Resin bound surfacing is comprised of natural aggregates bound in a clear resin and trowel applied to asphalt, concrete or Tarmac. The resultant resin bonded surface is capable of providing a highly attractive, anti slip finish to theme parks, driveways and walkways.
 Features Transparent and low ordor
Excellent bonding strength
High harness
Good waterproof,excellet heat and chemical resistance
Can mix any aggregates such as stones,gravels,pebbles,sands,quartz and so on.
Excellent water permeability for the finished paving.
Finished Resin Bonded Paving Features 38% of resin formulated from a botanic source

UV stable non yellowing resin,good water ,oil,acid ,heat,cold resistance

Product warranty up to 15 years available

Natural appearance

Recycled aggregates available

Highly permeable—up to 850 litres / m² / minute

High slip resistance

Suitable for pool surrounds,pathways,floor,garden, driveways, car parks and access roads and so on

Low maintenance

Variety of colours

With peration time of 2hrs

Can bear the light vehichles ,like SUV ,cars,bikes and so on
Application SOME APPLICATIONS FOR POROUS PAVING INCLUDE:

• Driveways

• Extended driveways or carports

• Pathways

• Courtyards

• Playgrounds

• Pool Surrounds

• Patios

• Parking Lots

• Disability/ Wheelchair Access Ramps

• Tree and Garden Surrounds

Water is a rare commodity these days. Conserve water by installing porous paving on your property. Rain will drain through the solid and strong, but porous paving material into the dirt below and nourish the environment. Lawn sprinkler irrigation
Operation Diagram Operation Diagram
When operate ,please refer to the below Diagram Advantages ADVANTAGES OF MTB-7910 UV Stable Resin bound and resin bonded surfacing
• Driveways compliment the house colour and stay puddle free. Customise lines for driveway basketball games and keep your feet cooler by choosing light colours.

• Extended driveways and carports, or other added storage spots that are normally eyesores, match the original driveway and compliment the house colour.

• Pathways see less puddling and are thus more slip resistant.

• Courtyards, or wide open entertaining places, keep cooler with lighter colours of stone, and the surface is free of puddles for entertaining after a rainstorm.

• Playgrounds keep cooler with light stone colors and become playful places with whimsical colour accents in bright shades of recycled glass that shine
• Pool surrounds with light surfaces stay cooler, and colour accents creatively make pool time more fun. The slip-resistant sand finish keeps everyone safe, too.

• Patios, large and small, are perfect for porous paving, and it is nice to have so many colour options to choose from to match the house or compliment the pool surround or the garden pathway system.

• Parking lots for cars see less puddles (if any) with porous paving. Customise and make permanent white lines and handicapped spots or employee of the month spots with white stone and recycled coloured glass. A company logo StoneSet into a parking lot makes quite the impression for your church, school, business, or organization.

• Disability and wheelchair access ramps match the parking lot or the front entry way's natural stone colour. With vibrantly coloured recycled glass, add welcoming accents. The sand coated StoneSet ramp will remain slip-resistant and require far less maintenance than a concrete ramp.

• Tree and garden surrounds made of porous paving provide puddle-free cool surfaces and shady areas outside around a building and improve the environment around it. Porous paving prevent erosion and the colour options makes and garden landscape stand out as special.
Technical Data Sheet

MTB-7910	Epoxy Resin (A)	Hardener(B)
Appearance	Clear Liquid	Clear Liquid
Viscosity(25°C,CPS)	2000-3000	500-700
Flash Point(°C)	>300	>150
Mix Ratio(by weight)	2	1
Curing Time	2Hrs for Operation Time
Curing Condition	8-10H at room temperature 90mins @ 70°C

Coverage Data
MTBJZJ Resin Bound Surfacing Resin                                           1.5kgs (Epoxy Resin (A)+Hardener(B))
MTBJZJResin Bound Surfacing Aggregate(4~6mm)              100kgs
Coverage @ 10mm                                                                                  6.5m² (approx)
Coverage @ 15mm                                                                                 4.675m² (approx)
Coverage @ 18mm                                                                                 3.89m² (approx)
Coverage @ 20mm                                                                                 3.5m² (approx) Physical Properties of MTB-7910 UV Stable Resin bound and resin bonded surfacing @ 20-25°C
Working Time                                                  40—55 minutes
Lay Before Rain                                             4—4½ hours
Foot traffic                                                      after  1 3—14½ hours
Light vehicle traffic                                     after  1½—2 days Occasional heavy vehicle traffic          after 7 days
Notes:Site conditions will affect the times quoted. All data is provided as a guide only.

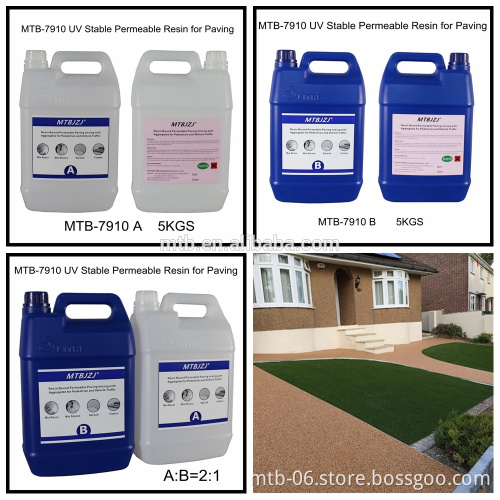

Detail Images Package & Delivery PACKAGE ---5KGS/barrel ,15kgs/set (10kgs of epoxy resin in white bottle and 5kgs of hardener in blue bottle ) ---20KGS/barrel,60kgs/set(40kgs of epoxy resin and 20kgs of hardener)
Delivery In 1-3 days to deliver to you when you confirm the order.
