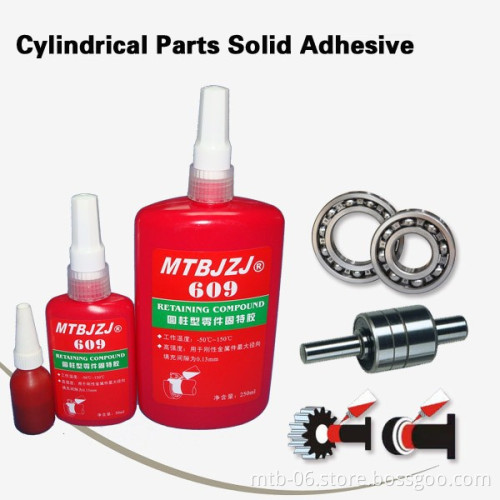

Cylindrical Bonding Adhesive

MTB-609 cylindrical retaining compound adhesive   1.Product characters A. With the cooperation in the way of press and low adhesive strength   B. Has the character of high strength,which is for the metal parts of steel material   C. The max filling ap is 0.13mm   D. Can be convient and suitale for different kinds of metal material parts   2. Product application   Main apply to the cylindrical parts solid and sealant,such as shaft bearings,shaft sleeve,keys slot,drivepupe,pulley,gearwheel,rotor and other cylindrical parts.     Technical Data Sheet

Item	Package	Color	Viscosity (mpa.s)	Max Gap Filling (mm)	Curing Time	Temperature(℃)	Tensile Shear Strenth(Mpa)
MTB603	50ml/250ml	Green	100~150	0.13	20mins/24h	-50~150	21
MTB609	50ml/250ml	Green	100~300	0.13	10mins/24h	-50~150	16
MTB620	50ml/250ml	Green	7500~10000	0.30	20mins/24h	-50~230	19
MTB638	50ml/250ml	Green	1800~3300	0.26	5mins/24h	-50~150	25
MTB641	50ml/250ml	Yellow	400~800	0.25	20mins/24h	-50~150	11.7
MTB648	50ml/250ml	Green	400~800	0.15	5mins/24h	-50~175	25
MTB660	50ml/250ml	Grey	300000~700000	0.50	20mins/24h	-50~150	17
MTB680	50ml/250ml	Green	800~1500	0.25	10mins/24h	-50~150	21
