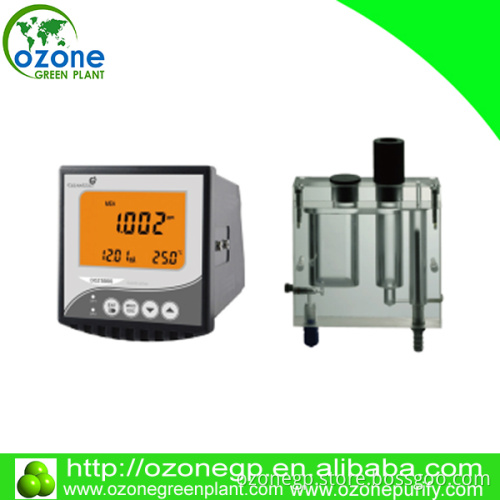

DOZ5000 Ozone monitor for water

 Resolution / accuracy

0.001ppm; 0.01ppm /±2% of full measuring range

Zero adjustment:

1(0%) or 2

 temperature range

-5.0~+100 °C

temperature compensation

ATC automatic/ MTC manual operation

Resolution/precision

0.1 °C / ± 0.5 °C

Sensor

Electrode dissolved ozone sensor

Temperature input

NTC22K

Control type

ON/OFF control (LIT) / Proportional pulse width control(PLC)

Signal output/load

0/4 - 20mA / 600Ω

Data interface

RS-485

Relay / specification

3 SPST / 250V 1A ( Or 110V 2A)

Hysteresis width of High and low point

0.01 - 2.00ppm / 0.1 - 20.0%

Cleaning period/ time of duration

1 - 999hours / 1 - 999S

Screen

Multi-line  LCD,Orange LED back light

Power

220 VAC

EMC grade

EN 50081-1 / EN 50082-1

Ambient temperature limits

-10~+50 °C (14~122 °F)

Environmental humidity limit

10 - 95% (No condensation)

level of protection

NEMA4X,IP 65

Size W*H*D

100 * 108 * 150mm

installation method

Dial plate installation

Cutting size of dial plate installation

93.5 * 93.5mm

Weight

900g
