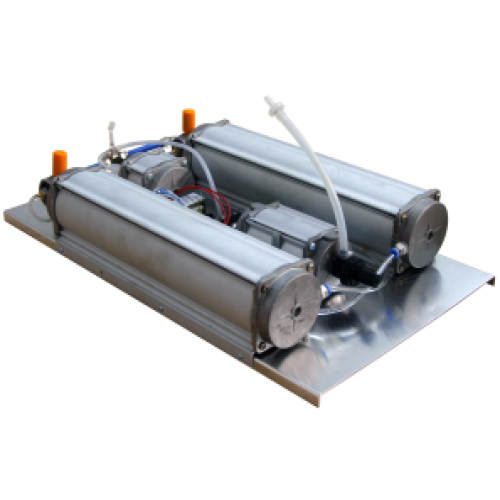

top quality 3L 5L 10L 2 tower oxygen making machine parts

  top quality 3L 5L 10L 2 tower oxygen making machine parts      Descriptions: 1. Simple structure, easy to operate, and stable oxygen output. 2. Material: zeolite/alumina; each unit can work independently, and oxygen output can reach to 3-10 LPM or higher. 3. With chiller for cooling air, no need additional refrigerant dryer for reducing cost. 4. Oxygen purity can up to 90+5%. Two oxygen cylinders exchange working, auto drain water, nitrogen and other impurities output. 5. Parts with shipping: chiller, fan and air inlet pipe. 6. Oxygen outlet pressure: 0.06-0.08 Mpa.

Item	Unit	Zeolite Material		Lithium Material
		OGP03L-1	OGP05L-1	OGP05L-2	OGP10L-2
Oxygen output	LPM	3L	5	5	10
Oxygen concentration	%	87%-93%	87%-90%	93%±3%	93%±3%
Power	W	280	450		650
Pressure(inlet)	Mpa	0.18-0.2	0.2
Pressure(outlet)	Mpa	0.06-0.08
Relative humidity	%	≤85%
Noise	Db	≤ 55	≤60		≤70
Dimension	mm	550×160×80	550×180×80	550×180×80	610×310×120
Weight	kg	5.5	5.8	5.8	7.8

Noted: Parts including oxygen generating unit, air compressor, chiller and fan.
