High purity 3L 5L 8L15liter portable oxygen generator for room and home use

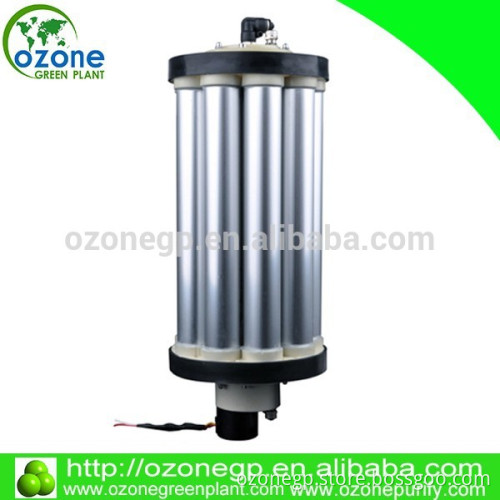

  High purity 3L 5L 8L15liter portable oxygen generator for room and home use     OGP-OX series oxygen generators use the characteristic of special molecular sieve to separate the oxygen from the air and remove harmful substance for high purity industrial oxygen product by thetechnology of pressure swing adsorption(PSA).         Feature: 1.Patented products OGP-OX series molecular sieve is an air separation plant which has already obtained domestic patent.   2.Rational construction Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1LPM to 160LPM, even higher.   3.Easy to control  Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.   4.The oxygen output is stable and continuously   5.Low-pressure oxygenproduction working pressure 1.5-2 Bar.

Item	Unit	OGP-OX3L	OGP-OX5L	OGP-OX7L	OGP-OX10L	OGP-OX15L
Oxygen output	LPM	3	5	7.5	10	15
Oxygen concentration	%	90%±3%
Air flow rate	LPM	36-45	60-75	90-115	150-200	180L/Min
Pressure(inlet)	Mpa	0.14-0.18	0.14-0.18	0.15-0.2	0.18-0.25	0.35
Pressure(outlet)	Mpa	0.06-0.08
Temperature	℃	indoor temperature
Relative humidity	%	≤ 70%±10%
Noise	Db	≤60	≤60	≤60	≤60	≤60
Dimension	mm	200×290	200×410	200×470	200×500	200×880
Net weight	kg	14	17.85	19.1	21.3	32.5
