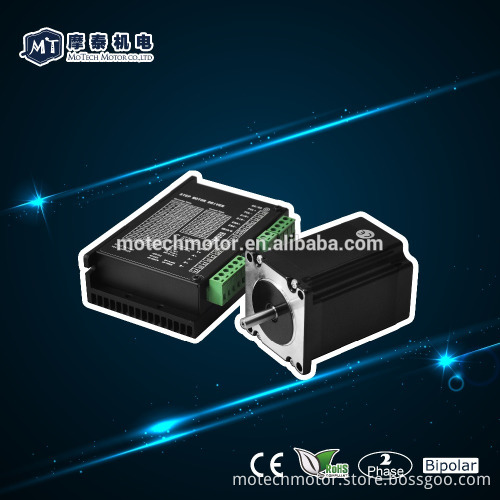

Two Phease Nema 23 Stepper Motor and M542 Stepper Driver
- Delivery Time:
- 3 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Product Description
Stepper Motor Driver M542 1) Electrical Specifications (Tj=25)
2) Dynamic current setting
3) Mechanical Specifications (unit:mm)
Company Information
Packaging & Shipping
FAQ
Stepper Motor Driver M542 1) Electrical Specifications (Tj=25) Supply voltage | 18~50VD |
Output current | 1.0 - 4.2A (3.0 RMS) |
Pulse input frequency | 0-200KHZ |
Isolation resistance | >500MΩ. |
Cooling | Natural Cooling |
Environment | Avoid dust, oil fog and corrosive gases |
Ambient Temperature | 0ºC~+50ºC. |
Humidity | 40%RH - 90%RH |
Operating Temperature | 70 ºC Max |
Vibration | 5.9m/s² Max |
Weight | Approx. 300g |
SW1 | SW2 | SW3 | RMS Current | Peak Current |
ON | ON | ON | 0.71A | 1.00A |
OFF | ON | ON | 1.04A | 1.46A |
ON | OFF | ON | 1.36A | 1.91A |
OFF | OFF | ON | 1.69A | 2.37A |
ON | ON | OFF | 2.03A | 2.84A |
OFF | ON | OFF | 2.36A | 3.31A |
ON | OFF | OFF | 2.69A | 3.76A |
OFF | OFF | OFF | 3.00A | 4.20A |
