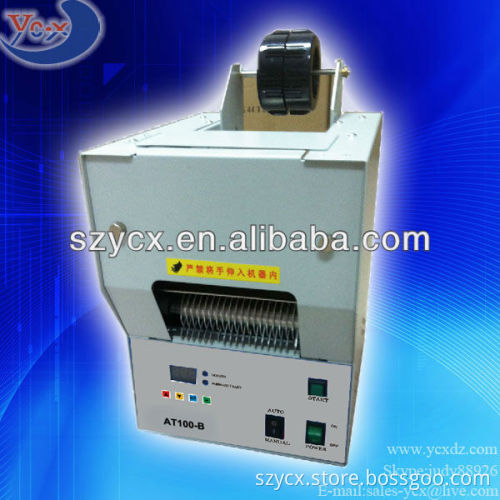

Automatic guillotine cutter / Tape cutter AT-100

Specifications Automatic guillotine cutter / Tape cutter AT-100

1.Cut tape width: upto 100 mm

2.Cut tape length: 40-999mm

3.With CE

Automatic guillotine cutter / Tape cutter AT-100   AT100 model tape dispenser is a high-end type for users who have special requirement, the wide cut width and cut length is applicable for most of the tapes. Cut Width: upto 100mm
Cut Length: 40~999mm
Fit Tape: adhesive tape, non-adhesive tape, protective film, etc. 1. AT100-A Type Features: Applicable toany type of adhesive tapes. Cutting adhesive tape width maximum 100 mm. AUTO/MANUAL two modes for choice. 2. AT100-B Type Features: Applicable toprotection film and so on Non-adhesive tapes. Cutting protection film width maximum 100 mm. AUTO/MANUAL two modes for choice. Function :
Applicable Tape: adhesive tape or protective film
Cut Width: upto 100mm
Cut Length: 40~999mm
Memory Function: The machine will remember the last setting tape length.
Time Interval Set: 0.1s to 99.99s
Operation Mode: Automatic / Manual Specification:
Display: 3-digits nixie tube
Motor: stepping motor
Power: AC220V/50Hz or AC110V/60Hz
Power Consumption: 180W
Ambient Temperature: 5-40°C
Ambient Humidity: <80% RH
Dimension (L*W*H): 262mm*185mm*330mm
Gross Weight: 13 Kg   AT100-A :   AT100-B :   AT-80 tape dispenser : 1. AT80-A Type Features: Applicable toany type of adhesive tapes. Cutting adhesive tape width maximum 80mm. AUTO/MANUAL two modes for choice. 2. AT80-B Type Features: Applicable toprotection film and so on Non-adhesive tapes. Cutting protection film width maximum 80mm. AUTO/MANUAL two modes for choice. Specifications: 1. Power Requirement: 100V,120V,220-240V(150W-600W) 2. Fuse 5A(100V,120V), 3A(220V,240V) 3. Dimensions: 190(W)*290(H)*250(D)mm 4. Gross Weight: 12 Kg 5. Tape Speed: 132mm sec 50Hz, 160mm sec 60Hz 6. Cut tape width: From 15-80mm 7. Cut tape length: From 40-999mm 8. Size of Roll Tape: Outside diameter of roll tape maximum 130mm 9. Accessories: Bobbin(75mm) 1 pcs . 10. Spare blade 6 pcs Features: 1. Freely adjust length 2. Best suitable for cutting wide tapes.   AT80-A:   AT80-B :
