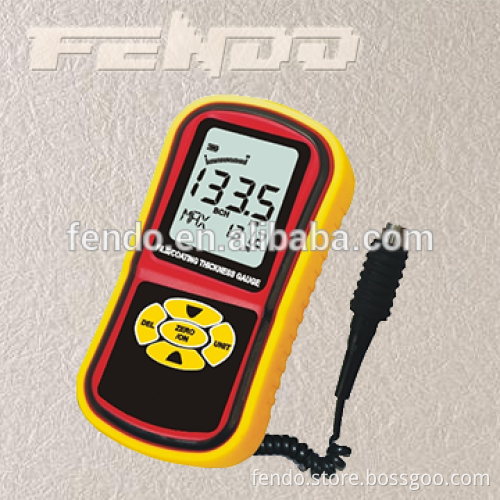

Digital Automotive car paint Coating Thickness Gauge

Product Description Digital Automotive car paint Coating Thickness Gauge
The coating thickness measuring instrument uses a dual function measurement method, it can automatically identify magnetic and non-magnetic substrate, and then use the appropriate test method, it can measure the thickness of the non-magnetic coating (such as aluminum, copper, enamel, rubber, paint, etc) on magnetic metal substrates (such as steel, iron , alloy and Hard magnetic steel).And the non-conductive coating thickness on a non-magnetic metal substrate.

The instrument has advantages of high detection accuracy, reliable and easy to maintain, good stability, simple operation, etc. It can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and testing fields.

portable Car Coating Thickness Gauge, Thickness tester
Features Introduction:
More widely measuring range :0-1800um
Automatic identification substrate material and display it on the LCD
Big screen, and a variety of colors back-light optional
Button is simple, easy to operate ,one-hand operation
Convenient automatic calibration function
Automatic correction function to prevent misuse calibration
Dynamically adapt to environmental features
V shaped groove suitable for measurements on cylindrical parts
Special probe structure has better stability
Beep when measurement or calibration is completed
180 degree flip for easy read data with top surface
parameter

Models	Magnetic Basement FD-CTR07	Measurement ranges	0-1800um
Resolution	0.1um(<100um)or1um(>100um)	Measurement error	±(3%H±1um)
Min.diameter of substrate	12mm	Min.thickness of substrate	0.5mm
Min.curvature radius of convex substrate	2mm	Min.curvature radius of concave substrate	11mm
Power supply	3*1.5V AAA Batteries	Operating temperature range	0-40°C
Operating hunidity range	10-95%RH	Overail dimensions	72x35x145mm
Weight	246.1g（without battery)	Battery life	Continuously 20 hour
LCD backlight function	√	LCD display	√
Low battery indication	√	Auto power dff	√
Standard carton gross weight	13.7KG	Standard quantity per carton	12pcs
Standard carton size	51.7*40.5*32cm	Hi-sensibility sensor	for precise measurement
zero point/tow points/basic calibration	√	Measuring mode	single,continually and difference
Data analysis	Average,maximum,minimum	Operation current	Around 25mA

Detailed Images Packing & Delivery packaging： Unit product is the color box
or as per client requested
Delivery term: 30days after received order confirmation
Payment term: 30% deposit, balance by copy bill of loading
