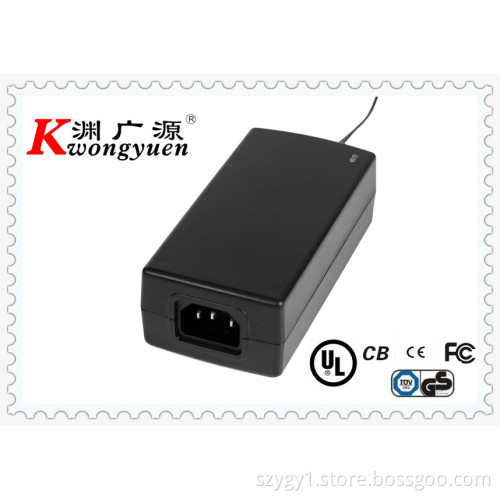

YK-57 ac 100-240v adapter 12v5a smps cctv power supply with CE UL approval

Get Latest Price

Delivery Time:: 7 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China (Mainland)

Product Description

Specifications 1.12V5A power adapter

2.I/P:AC 100-240V

3.O/P:DC 12V 5A

4.100% full-load burning test

5.22 years factory

Model		YK30	YK57
Input	Input connecting plug	USA/EUR/UK/AUS/Others, C6/C8/C14/Others
	Input voltage	AC100-240V, 50/60Hz
Output	Output connector	5.5 * 2.1mm/Other, 90cm/optional
	Output voltage	DC 3-24V + / - 5%
	Max output power	36W	60W
	Ripple wave	(mVp-p): <1%
	Linear modulate	±0.5%Max
	Temperature coefficient	±0.02%/°C
	Start time	≤3s(240VAC input,io=100%)
	Guard time	≥20ms(240VAC input,io=100%)
	Output standard	12V3A	12V4A / 12V5A
Protection	Override protection	115%~200%vA,automatic recovery
	Short-circuit protection	1 channel: automatic recovery
Insulation	Insulation strength	1500VAC/10mA,1MIN
	Insulation resistance	≥30MΩ,DC 500V
Environment	Working temperature	0°C~40°C,10%~90%RH
	Store temperature	-20°C~60°C,10%~90%RH
Size	Size	1405434mm	1165032mm
	Net Weight	165G	183G

Better quality same price,better price same quality SKYPE:christy001002 QQ:694892754 MOB:+86 135-1007-5053 TEL: + 86 (0)755 82906929 FAX: +86 (0)755 83217691
