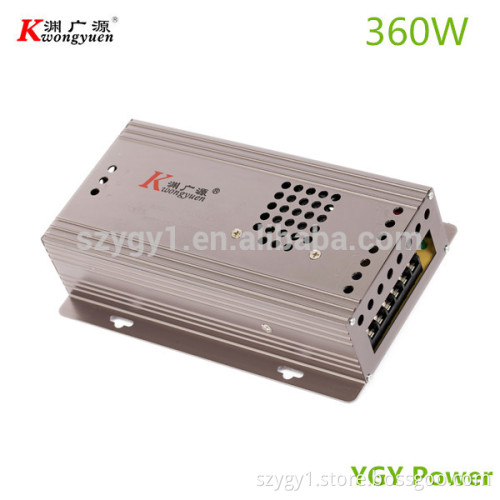

12v 30a switching power supply for Security Camera

Model

TK09

TK06

Input

Input voltage

AC100-240V, 50/60Hz

Output

Max power

72W

180W

Output voltage

3-24V  + / - 5%

Ripple wave

(mVp-p): <1%

Linear modulate

±0.5%max

Temperature coefficient

±0.02%/°C

Start time

≤3s(240VAC output,1o=100%)

Guard time

≥20ms(240VAC input,1o=100%)

Output standard

12V5A / 24V2A

12V10A / 12V15A / 24V5A

Protection

Override protection

115%~200%kvA,automatic recovery

Short-circuit protection

1 channel: automatic recovery

Insulation

Insulation strength

1500VAC/10mA,1MIN

Insulation resistance

≥30MΩ,DC 500V

Environment

Working temperature

0°C~40°C,10%~90%RH

Store temperature

-20°C~60°C,10%~90%RH

Size

Size

160X100X43mm

200X100X43mm

Weight

450G

545G
