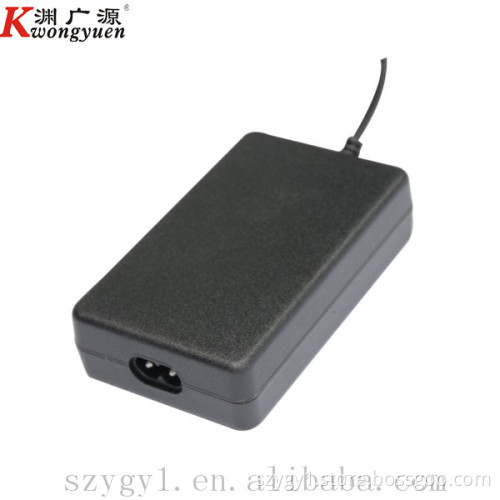

100V to 240V input voltage Desktop 12V output standard CCTV power supply

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications *22years' exprience

*offers OEM and ODM services

*Best quality&price

*Suitable for the world

*Short lead time

PARAMETER
MODEL		YK37	YK10		YK25
Input	Input connecting plug	USA/EUR/UK/AUS/others, ,C6/C8/C14 others
	Input voltage	AC100-240V, 50/60Hz
Output	Output connector	5.5 X2.1mm/Other,90cm/optional
	Output voltage	3-24V + / - 5%
	Outputelectric current	1.5A-2.5A
	Ripple wave	(mVp-p): <1%
	Linear modulate	±0.5%max
	Temperature coefficient	±0.02%/°C
	Start time	≤3s(240VAC output,1o=100%)
	Guard time	≥20ms(240VAC input,1o=100%)
	Output standard	12V2A
Protection	Override protection	115%~200%kvA,automatic recovery
	Short-circuit protection	1 channel: automatic recovery
Insulation	Insulation strength	1500VAC/10mA,1MIN
	Insulation resistance	≥30MΩ,DC 500V
Environment	Working temperature	0°C~40°C,10%~90%RH
	Store temperature	-20°C~60°C,10%~90%RH
Size	Size	110X67X32mm	95X51X32	104X44X31
	Weight	126G	112G	126G
