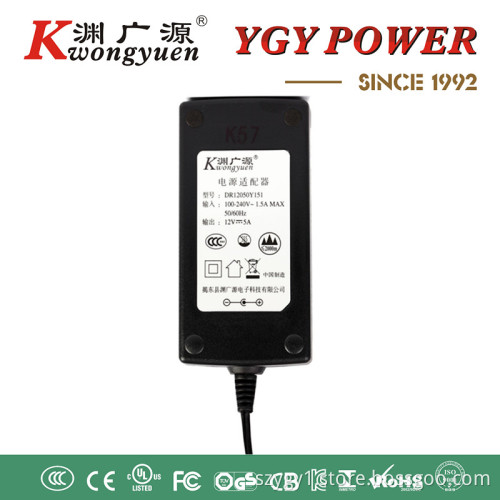

CE,UL,CUL,FCC,GS, KC, S-mark,ROHS approved Power Supply AC DC power adapter 24V2A

Specifications 65W power supply

*CE,UL,ROHS,GS,CB,FCC,TUV,KC

*22-year experience

*Output:9~24V 1~5A

*7-10 days for delivery time

  More details

Model		YK30	YK57
Input	Input connecting plug	USA/EUR/UK/AUS/Others, C6/C8/C14/Others
	Input voltage	AC100-240V, 50/60Hz
Output	Output connector	5.5 * 2.1mm/Other, 90cm/optional
	Output voltage	DC 3-24V  + / - 5%
	Max output power	36W	60W
	Ripple wave	(mVp-p): <1%
	Linear modulate	±0.5%Max
	Temperature coefficient	±0.02%/°C
	Start time	≤3s(240VAC input,io=100%)
	Guard time	≥20ms(240VAC input,io=100%)
	Output standard	12V3A	12V4A / 12V5A
Protection	Override protection	115%~200%vA,automatic recovery
	Short-circuit protection	1 channel: automatic recovery
Insulation	Insulation strength	1500VAC/10mA,1MIN
	Insulation resistance	≥30MΩ,DC 500V
Environment	Working temperature	0°C~40°C,10%~90%RH
	Store temperature	-20°C~60°C,10%~90%RH
Size	Size	140*54*34mm	116*50*32mm
	Net Weight	165G	183G

  About us YGY is engaged in the power adapter development, production, sales and service. We provide reliable after-sales services. We also offer OEM and ODM services to customers. We have a strong team of professional engineers & managers together with sophisticated of production & inspection equipment. We have set up a standard production workshop. We have a young and creative R&D team.    Advantages 1. Factory direct sales: Wholesale discounts and good quality 2. Short and timely delivery period:7-10 days 3. High production capacity: We have a 30,000-square-meter manufacture in Jieyang and more than 500 workers, which make the production reaches 30,000 units per day 4. Our products are mostly certified by CE, LVD, RoHS, EMC, FCC ,UL, CUL, CCC,KC,SAA,GS etc.   Market   Associated Brands   workshop   Certifications   Trade Shows   Testing Process
