Multiple output dc 12V 10A 15A 20A 30A CCTV power supply box

Specifications 1.High quality,fast delivery

2.One years' warranty

3.23years' exprience

4.Factory direct price

5.Offer sample

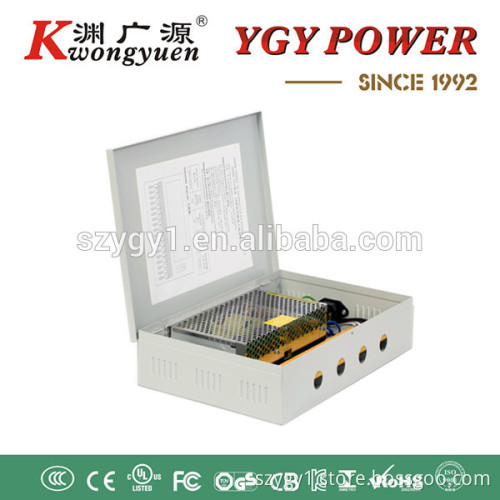

         180w 18-CH 12V 20A CCTV power supply box  for Camera

Model number		TX05
Input	Input voltage	AC100-240V, 50/60Hz
Output	Output connector	18 channel
	Max power	240W
	Output voltage	DC 12V  + / - 5%
	Ripple wave	(mVp-p):  <1%
	Linear modulate	±0.5%max
	Temperature coefficient	±0.02%/°C
	Start time	≤3s(240VAC input,io=100%)
	Guard time	≥20ms(240VAC input,io=100%)
	Output standard	12V20A,18 channel Output
Protection	Override protection	115%-200%vA,automatic recovery
	short-circuit protection	1  channel: automatic recovery
Insulation	Insulation strength	1500VAC/10mA,1MIN
	Insulation resistance	≥30MΩ,DC 500V
Environment	Working temperature	0°C-40°C,10%-90%RH
	Store temperature	-20°C-60°C,10%-90%RH
Size	Size	302*202*61mm
	Net weight	2110g

              Shenzhen Yuanguangyuan Technology Co., Ltd. was established in 1992. Now, we have more than 400 workers.   We are professional in CCTV Power Supplies, industrial power adapters and transformers.   Commonly used in DVD players, LCD and TFT TVs, MP4 players, digital cameras, surveillance video camera, other A/V products, cell phone charger, network information, security equipment, small home appliances, etc.   Our company has a 15000-square-meter power production base in Jieyang, with 17 years of experience in development.   Our advantage:   1  Factory direct sale   2  Short delivery time: 7-10 days   3  Production capacity : 30,000 units per day   4  OEM & ODM service   5  1 year warranty   6  17-year experience   7  Certification:   CE, LVD, RoHS, EMC, FCC and CCC   Contact us:   Skype: duaiyifang Wechat: Sandy101024 Tel: +86 755-82906925 Ext 815
