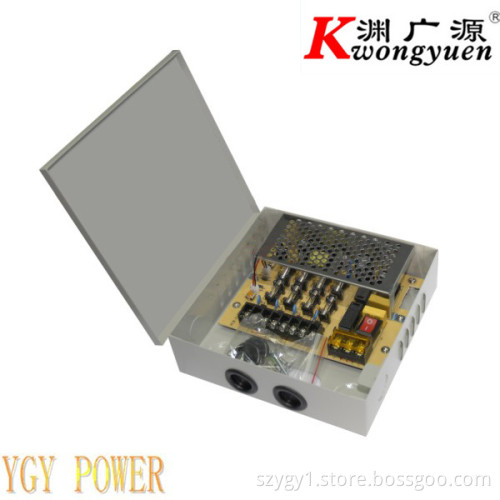

12V3.2A 4-CH output 12V Power Supply for CCTV camera

Get Latest Price

Delivery Time:: 7 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 1. Factory direct price

2. shot lead time

3.high quality

4.22-year expert in CCTV power

PARAMETER
MODEL		TX01
Input	Input voltage	AC100-240V,50/60Hz
Output	Output connector	4channel
	Max power	38W
	Output voltage	DC12V+/-5%
	Ripple wave	(mVp-p): <1%
	Linear modulate	±0.5%max
	Temperature coefficient	±0.02%/°C
	Start time	≤3s(240VAC output,1o=100%)
	Guard time	≥20ms(240VAC input,1o=100%)
	Output standard	12V3.2A,4-CH output
Protection	Override protection	115%~200%kvA,automatic recovery
Protection	Short-circuit protection	1 channel: automatic recovery
Insulation	Insulation strength	1500VAC/10mA,1MIN
Insulation	Insulation resistance	≥30MΩ,DC 500V
Environment	Working temperature	0°C~40°C,10%~90%RH
Environment	Store temperature	-20°C~60°C,10%~90%RH
Size	Size	190x173x53mm
Size	Weight	1000G

Better quality same price,better price same quality SKYPE:christy001002 QQ:694892754 MOB:+86 135-1007-5053 TEL: + 86 755 82906929 FAX: +86 755 83217691
