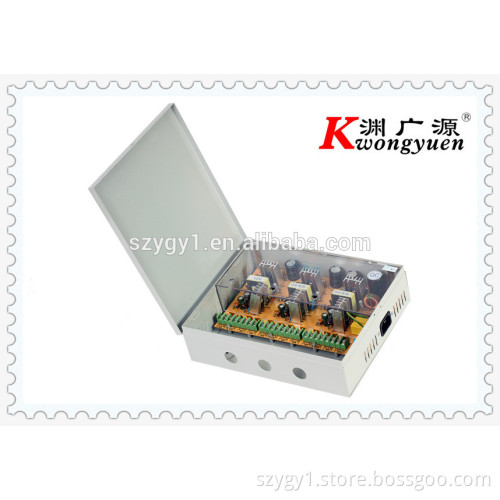

1-CH input,12-CH output multichannel 12v 15a CCTV power supply

Specifications 1-CH input,12-CH output every 4-ch output with stand-alone

adjustable power supply 12v 15a

product show: technical parameters parameter:

Model number		TX09
Input	Input voltage	AC 100-240V, 50/60Hz
Output	Output connector	12 channel
	Max power	180W
	Output voltage	DC12V(max adjust in  13.8V)
	Ripple wave	(mVp-p):  <1%
	Linear modulate	±0.5%max
	Temperature coefficient	±0.02%/°C
	Start time	≤3s(240VAC input,io=100%)
	Guard time	≥20ms(240VAC input,io=100%)
	Output standard	12V15A,12 channelOutput
Protection	Override protection	115%-200%vA,automatic recovery
	short-circuit protection	1  channel: automatic recovery
Insulation	Insulation strength	1500VAC/10mA,1MIN
	Insulation resistance	≥30MΩ,DC 500V
Environment	Working temperature	0°C-40°C,10%-90%RH
	Store temperature	-20°C-60°C,10%-90%RH
Size	Size	238*191*62mm
	Net weight	1500g

packing show: Comany Features: 1. Factory direct sales: Wholesale discounts and good quality 2. Short and timely delivery period: 7-10 days 3. High production capacity: We have a 25000-squaremeter manufacture in Jieyang and more than 600 workers,  which make the production reaches 50,000 units per day 4. Our products are mostly certified by CE, LVD, RoHS, EMC, FCC UL, CUL and CCC,KC,SAA 5. Good service: Our products are 1 year warranty. Your inquiry related to our products or prices will be replied in 24hours. Well-trained and experienced staffs to answer all your enquires in fluent English
6. OEM and ODM: Any your customized requirements we can help your design put into product 7. Over 8 hours aging of all products. 8. 100% Inspect when the product be package Cetification: Contact Us:    1. We will be glad to answer any question you may have, please feel free to contact us , we do try respond as quickly as possible. Due to time zone difference, please allow 12~24 hours to get your mail replied. Thanks for your support.  2.If you want to import some products to test the market, we can lower the MOQ.  3.We hope to build long-term businessship with every client. We will try our best to provide the best service and products.  Free sample is allowed before you place an order.  4.Please contact us if you have any questions. Thank you for giving us a chance to make things right by good communication. Contact name: Bruce Fu Tel:+86 755 82906929 Skype: duaiyifang Trademanager: cn1510917268 Website: www.szygy.cn
