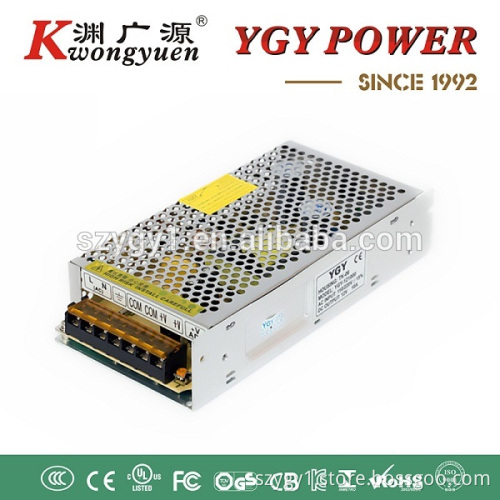

12V10A AC/DC Adapter for CCTV Cameras with 180W Maximum Output Power

Specifications 1.Best quality&price

2.Short lead time

3.1 year warranty

4.High efficiency >80%

5.100% full-load burning test

  Product Description

Model number		TK06
Input	Input voltage	AC100-240V, 50/60Hz
Output	Max power	180W
	Output voltage	DC 3-24V  + / - 5%
	Ripple wave	(mVp-p):  <1%
	Linear modulate	±0.5%max
	Temperature coefficient	±0.02%/°C
	Start time	≤3s(240VAC input,io=100%)
	Guard time	≥20ms(240VAC input,io=100%)
	Output standard	12V15A
Protection	Override protection	115%-200%vA,automatic recovery
	short-circuit protection	1 short-circuit protection, automatic recovery
Insulation	Insulation strength	1500VAC/10mA,1MIN
	Insulation resistance	≥30MΩ,DC 500V
Environment	Working temperature	0°C-40°C,10%-90%RH
	Store temperature	-20°C-60°C,10%-90%RH
Size	Size	200*100*43mm
	Net weight	545g
