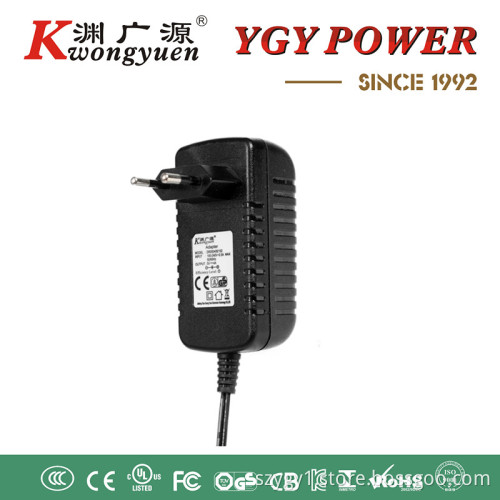

YK-63 adapter 220v 5v 2a 12v2a switching cctv power adapter with CE UL ROHS

Specifications 1.CE UL FCC ROHS CB GS

2.I/P:AC100-240V

3.O/P:DC 12v1A/ 12V 2A

4.100% full-load burning test

Model number		YK63
Input	Input connecting plug	EUR
	Input voltage	AC100-240V,50/60Hz
Output	Output connector	5.5 * 2.1mm/others, 120cm/others
	Output voltage	DC 3-24V  + / - 5%
	Max power	24W
	Ripple wave	(mVp-p):  <1%
	Linear modulate	±0.5%max
	Temperature coefficient	±0.02%/°C
	Start time	≤3s(240VAC input,io=100%)
	Guard time	≥20ms(240VAC input,io=100%)
	Output standard	12V1A / 12V1.5A / 12V2A
Protection	Override protection	115%-200%vA,automatic recovery
	short-circuit protection	1 channel: automatic recovery
Insulation	Insulation strength	1500VAC/10mA,1MIN
	Insulation resistance	≥30MΩ,DC 500V
Environment	Working temperature	0°C-40°C,10%-90%RH
	Store temperature	-20°C-60°C,10%-90%RH
Size	Size	85*44*67mm
	Net weight	105G

    workshop     About us YGY is engaged in the power adapter development, production, sales and service. We provide reliable after-sales services. We also offer OEM and ODM services to customers. We have a strong team of professional engineers & managers together with sophisticated of production & inspection equipment. We have set up a standard production workshop. We have a young and creative R&D team.    Advantages 1. Factory direct sales: Wholesale discounts and good quality 2. Short and timely delivery period:7-10 days 3. High production capacity: We have a 30,000-square-meter manufacture in Jieyang and more than 500 workers, which make the production reaches 30,000 units per day   4. Our products are mostly certified by CE, LVD, RoHS, EMC, FCC ,UL, CUL, CCC,KC,SAA,GS etc.         Associated Brands   Market   Testing Process   Certifications   Trade Shows
