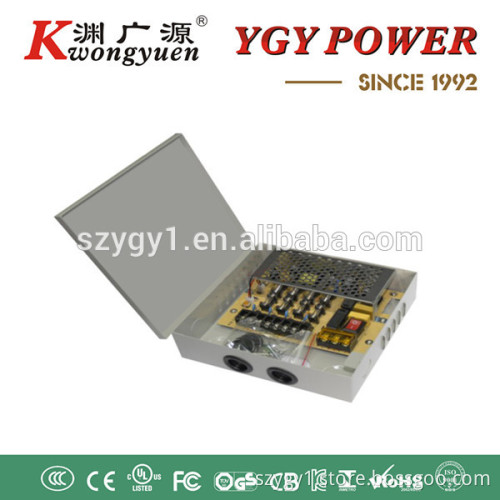

4-CH output 12v 3.2a CCTV Power supply

Specifications 1.High quality,fast delivery

2.One years' warranty

3.23years' exprience

4.Factory direct price

5.Offer sample

          ------- 4-CH output  12v 3.2a CCTV Power supply -------

Model number		TX01
Input	Input voltage	AC100-240V, 50/60Hz
Output	Output connector	4 channel
	Max power	38W
	Output voltage	DC 12V  + / - 5%
	Ripple wave	(mVp-p):  <1%
	Linear modulate	±0.5%max
	Temperature coefficient	±0.02%/°C
	Start time	≤3s(240VAC input,io=100%)
	Guard time	≥20ms(240VAC input,io=100%)
	Output standard	12V3.2A,4 channelOutput
Protection	Override protection	115%-200%vA,automatic recovery
	short-circuit protection	1  channel: automatic recovery
Insulation	Insulation strength	1500VAC/10mA,1MIN
	Insulation resistance	≥30MΩ,DC 500V
Environment	Working temperature	0°C-40°C,10%-90%RH
	Store temperature	-20°C-60°C,10%-90%RH
Size	Size	190*173*53mm
	Net weight	1000g

   Packing show:       Cetification:       Company details:        Shenzhen Yuanguangyuan Technology Co., Ltd. was established in 1992. Now, we have more than 400 workers.   We are professional in CCTV Power Supplies, industrial power adapters and transformers.   Commonly used in DVD players, LCD and TFT TVs, MP4 players, digital cameras, surveillance video camera, other A/V products, cell phone charger, network information, security equipment, small home appliances, etc.   Our company has a 15000-square-meter power production base in Jieyang, with 17 years of experience in development.   Our advantage:   1  Factory direct sale   2  Short delivery time: 7-10 days   3  Production capacity : 30,000 units per day   4  OEM & ODM service   5  1 year warranty   6  17-year experience   7  Certification:   CE, LVD, RoHS, EMC, FCC and CCC
