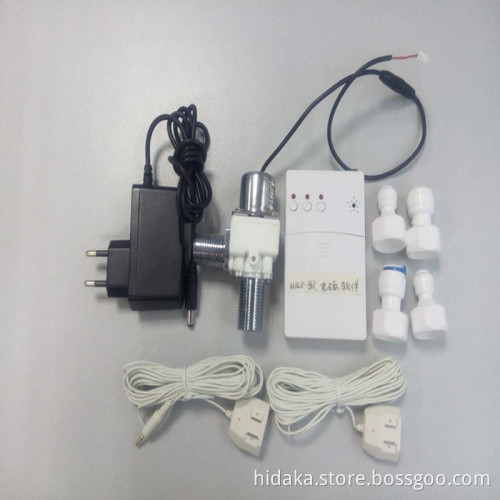

Smart Home Security Probe for Water Leak Detector Alarm with Solenoid Valve

  2015 New Product Smart Home Security Tester for Water Leak Detector Alarm and control System Specifications. 2015 New Product Smart Home Security Tester for Water Leak Detector Alarm and control System   1.External input power : DC 12V   2.Maximum (Peak) power consumption : 300mA   3.Leak Detect operation current : Less than 1mA   4.Leak Detect operation time : Less than 1 second.   5.Leak detect warning sound : 10 seconds ON, 10 seconds OFF and repeat.   6.Warning tone power consumption : 12mA   7.Warning tone sound pressure : 80dBu   8.Valve close operation time : approx. 30ms.   9.Valve open operation time : approx. 30ms.   10.IP Protection:IP67   11.Valve system : Solenoid type.   12.Acceptable power pressure ; 0.02 – 0.80 MPa   13.Operation voltage     : DC6V   14.Valve pipe : diameter 1/2 inch   15.Operational temperature : 1 – 75 degree C   16.Battery : AA size, 1.5V x 4pcs = 6V   17.Low voltage detection : Less than 4.7V   18.Battery life : more than 1 year.   19.Extra connector provided for External warning sound device.    Operation Instruction 2015 New Product Smart Home Security Tester for Water Leak Detector Alarm and control System   1.First power-ON, all LED will flash and automatically open the valve.   2.After open the valve, all LED’s will be off. But Reset-LED will flash every 65 seconds.   3.To open valve manually, press Open-button, valve will open and Open-LED will be ON to   Indicate currently valve is open.   4.Press Reset-button to return to normal operation mode.   5.To close valve manually, press Close-button, valve will close and Close-LED will be ON toIndicate currently valve is close.   6.After check all of above operation modes, Press Reset-button to return to normal operation mode   7.Connect sensor wire with 2.5mm plug to main unit and place sensor to desired position.   8.When water leak detected, valve will automatically close and flash close-LED as well aswarningtone 10sec interval until reset button pressed or unit power-off.   9.Clean leaked water and Sensor, then press Reset-button to resume normal operation.   10.Extra connector provided for External warning sound device.          Indicated as follows.   NO = Normally Open CT = Center terminal NC = Normally Contact.   1). Prevent Water Heaters,water softeners or even the water main from flooding your property:   2015 New Product Smart Home Security Tester for Water Leak Detector Alarm and control System   maintenancefree appliance, but they are also one of the single most damaging appliances in the home. Because Water Heaters are continually under pressure, even small pressurized leaks can quickly flood and devastate a home. Whether at home, at work, or on vacation these flooding events can go undetected for hours or even days.   2). Without water leak detection, Flooding and water damage Will Continue:   2015 New Product Smart Home Security Tester for Water Leak Detector Alarm and control System   discovered and the water supply is manually shut off   3). With water leak detection, Property Damage is Avoided:   2015 New Product Smart Home Security Tester for Water Leak Detector Alarm and control System   the water supply is automatically and immediately shut off.   Hidaka water leak automatically shuts off the water supply to the Water Heater and sounds an alarm, leaving all other household fixtures and appliances operational. Easily installed in fifteen minutes. 1-Year Manufacturer's Warranty.   4). Components:   2015 New Product Smart Home Security Tester for Water Leak Detector Alarm and control System   · Motorized Ball Valve ("1/2","3/4","1" for your selection) · Control Unit (with Battery Backup 4 X AA Size) · Water/Leak Sensor (2pcs 6m ) · AC Power Adaptor (or use 4 X AA Batteries as Primary Power Source,we don't supply battery) · Output Contact Wires (2)   5). How Water leak detection Works:   2015 New Product Smart Home Security Tester for Water Leak Detector Alarm and control System   The valve is installed between the Water Heater and its manual shutoff valve. Water/leak sensor is placed at the base of the Water Heater Valve stays open until water loss is detected Water on sensor closes FloodStop valve and sounds alarm Valve stays closed until problem is attended to and system is reset   6). Water Heater Flood Detector Auto Shutoff Features:   2015 New Product Smart Home Security Tester for Water Leak Detector Alarm and control System Hidaka's valve connects to the water heater 3/4 inch supply line AC powered or battery powered, or AC powered with battery back-up 4 "A" Batteries last for up to 1 year Solid brass "full port" non-restricting valve body, DC 6V motor driven ball-valve When leak is detected, alarm sounds and water supply is shut off Can be connected to alarm or automation system with the on-board alarm output if desired Controller mounts on wall, sensor is placed at the base of the water heater 7). Top 5 places to install water leak detector   2015 New Product Smart Home Security Tester for Water Leak Detector Alarm and control System Under the Bathroon Sink Behind a Leaky Toilet Under a Dishwasher By the Water Heater Under the Refrigerator water purifier water cleaner Also widely used for swimming pool, air conditioner, hot water tanks, piping, washing machine, water treatment....   8) Pictures   2015 New Product Smart Home Security Tester for Water Leak Detector Alarm and control System
