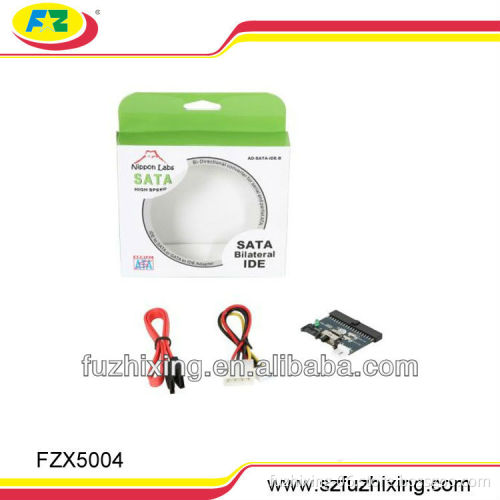

Bi-Directional IDE and SATA Bilateral Connector Converter Adapter

Specifications 1.IDE and SATA Bilateral Connector

2.Model FZX5004

3.IC JM20330

4.High quality

5.Fast delivery

IDE and SATA Bilateral Connector   Description: Bi-Directional SATA to IDE Adapter for serial and parallel ATA. This adapter Does-it-All IDE to SATA Adapter or SATA to IDE Converter. This is a bi-directional converter for serial and parallel ATA translation. It includes the serial ATA PHY, Link, Transport, and Parallel ATA (Application Layer) controller. The serial ATA Physical, link and transport layers are complaint to Serial ATA 1.0. This IDE to SATA Converter supports a 1.5Ghz data rate. Features: With LED indicated power Easy to install and no driver is required Serial ATA 1.0 Specification Compliant Automatic Serial ATA 1.5 Gbps Speed Negotiation ATA/ATAPI PIO mode 0 to 4 ATA/ATAPI PI Ultra DMA of transfer rate 16.7, 25, 33, 48, 66, 100, 133, and 150 Mbps ATA/ATAPIPI LAB48 addressing mode associated with 2-byte sector count Support Serial ATA hot-plug Ultra Low power consumption Work for both AC and DC couple between the transmitter and receiver Provide specified OOB signal detection and transmission Support spread spectrum clocking to reduce EMI Support partial/slumber power management Provide adjustable TX signal amplitude and pre-emphasis level Slave support Weight: 64.4g (with package) Package contents: 1 x IDE to SATA or SATA to IDE Bilateral Converter Adapter 1 x 4 pin power cable 1 x SATA cable   About us : ♣Fuzhixing is specialized in all kinds of computer accessoires,including HDD enclosure, Hdd docking station, Converter cable, Usb to sata ide cable and notebook adapter,which has 10years experience,so we can assure you high quality,competitive price,excellent service &technicali support.   After sales service ♣ 1 years warranty,if you found any problem without manmade ,tell us and we can deal with it for free ♣ 30days for replacement,the condition is that our products have problem actually ♣ Once products received more than 7 days ,can not be accepted for return.   Product Pictrures:       HK Fair Photos:
