CE RoHS UL Certificated neon electronic transformers

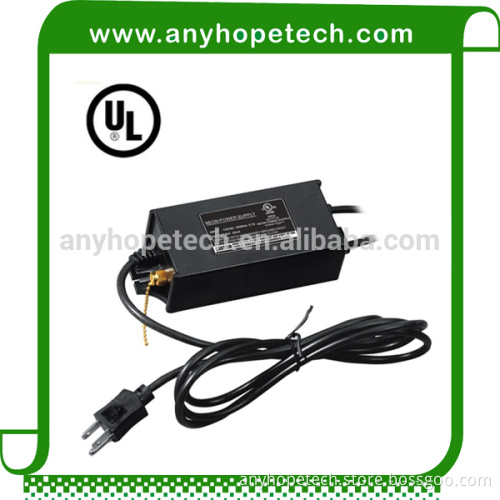

  Product Description Super quality UL Certificated neon electronic transformers Model:AH1-A206GL   Electronic Transformer for neon   1. Compliance with UL standard UL2161; 2. Manifold protection device: open circuit ,over heat, SGFP; 3. High power factor and low electromagnetic disturbance; 4. Exposed type grounding output, easy to connect ground for small neon signs; 5. With pull-chain switch and UL standard plug, excellent for small neon signs; 6. Use only indoor.

Model	AH1-A206GL
Input	120V 50/60Hz 0.7A
Output	6kV 30mA 34kHz
Min loading(D12mm mercury/argon)	2m
Weight	0.8kgs
Packing	20pcs /18.5kgs
Packing size	742 * 257  * 280mm
Diameter(mm)	7	8	9	10	11	12	13	15
Gas pressure(mmHg)	18	17	15	13	12	11	10	9
Load length in feet(clear or red neon)	7	8	9	11	13	16	17	19
Load length in feet(mercury/argon)	8	9	11	12	15	18	20	23

            Company Information         Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.
       Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.     Our Services Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS,FedEx,bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number     FAQ   Why you should use LED lighting?   Some basic advantages of LEDs: 1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.  You and our environment will be able to benefit in many ways with this type of lighting.   Factory:  Welcome to visit our website: www.anyhopetech.com
