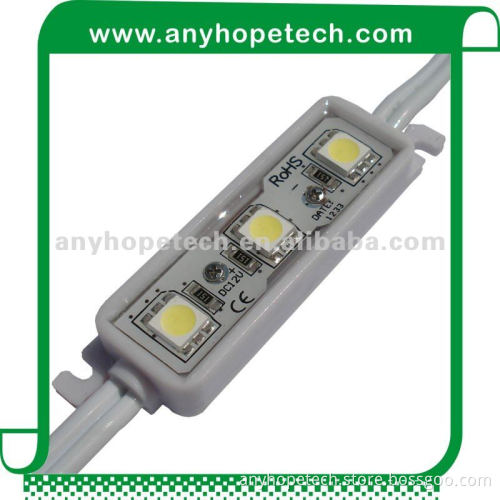

Lowest price Epistar chip led module light source 3led smd 5050

    Product Description Lowest price Epistar chip led module light source 3led smd 5050
     Model:AH-MDPL5050W-12-3           Working Voltage:  DC12V, Dimmable to DC6V
Working Current:  60mA
Power:  0.72W/Module
LED QTY:  3LEDs/Module   View Angle:  120 degree
Color:  Red, Yellow, Blue, Green, White, Warm white, Pink, Amber, Orange, Purple   Size:  45*15*8 mm/1.77*0.59*0.31inches           Power Factor: >0.9   Power Efficiency: >90%   Lighting Efficiency: > 80%    Certification:   CE,RoHS   Waterproof:      IP67
Weight:            0.53kgs/string   All LED's view angle is more than 120 degree.   2 years warranty.     Average life time: 50,000hrs    Operating Temperature: -20ºC ~  50ºC / (-4ºF ~  122ºF)
Storage Temperature: -30ºC ~  60ºC / (-22ºF ~  140ºF)
    Max Lumens per LED:  9lm(Red),9lm(Yellow),15lm(Green),10.5lm(Blue),22.5lm(White),21lm(Warm White)
Color Temperature:  2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K

Model Number	Color	Typ.Flux (LM/PC)	LED QTY (LEDs/PC)	Voltage (DC)	Power (W/PC)
AH-MDPL5050R-12-3	Red	27	3	12V	0.72
AH-MDPL5050Y-12-3	Yellow	27
AH-MDPL5050B-12-3	Blue	31.5
AH-MDPL5050G-12-3	Green	45
AH-MDPL5050W-12-3	White	67.5
AH-MDPL5050WW-12-3	Warm White	63
AH-MDPL5050P-12-3	Pink	27

      The distance between two modules,60mm-500mm is available,standard is 100mm/3.94", minimum distance is 60mm /2.36".             The single color modules connect to controller and power supplies:   Power supply should be DC12V.   Maximum 50 Modules/link/Loop.   Better to feed power through both ends of each link.   Modules should be installed in a proportional spacing to make sure the modules emitting evenly.   Be sure the postive and negative are not reversed.                Company Information             Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.          Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.
