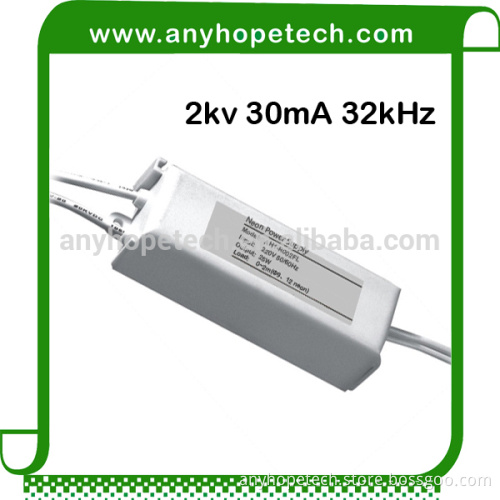

High Precise 30mA 2kV 220v transformer
  • High Precise 30mA 2kV 220v transformer
High Precise 30mA 2kV 220v transformer

High Precise 30mA 2kV 220v transformer

Delivery Time:
5 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  Product Description   High Precise 30mA 2kV 220v transformer  Model:AH1-R002FL   1. High voltage high frequency output;
2. High power factor:>0.9;
3. Completely sealed and waterproof, suitable for indoor and outdoor installation;
4. Using type: constant lighting, flashing and gradually changing;
5. Using environment: -25°C -40°C, relative humidity: 0-90%.

Model AH1-R002FL
Input 220V 50/60Hz 0.11A
Output 2kV 30mA 32kHz
Min loading
(D12mm mercury/argon)
0.2m
Weight(kg) 0.13
Packing 50pcs 7.5kg
Packing size 335 * 190 * 203mm
Diameter tubing(mm) 7 8 9 10 11 12 13 15
Gas pressure(mmHg) 18 17 15 13 12 11 10 9
Load length in meter
(clear or red neon)
0.5 0.5  1  1 1.5  2  2  3
Load length in meter
(mercury/argon)
0.5 0.5  1 1.5  2 2.5 2.5 2.5
      All listed values are indicative and represent an average. Values can significantly vary due to filling pressure, temperature, high voltage cable length, electrode type and sign material;
2.Deduct 1 foot for each Pair of electrodes from above load length figures;
3.Footage for mercury filled tubes based on operation at 4°C (40°F)or above.Deduct 25% of footage for operation below 4°C(40°F);
4. The loading shall not exceed the max .value and the minimum value listed in the table when using, the minimum loading of products with different diameter can be calculated according to the max .value.     Company Information         Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.
       Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.     Our Services Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS,FedEx,bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number     FAQ   Why you should use LED lighting?   Some basic advantages of LEDs: 1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.  You and our environment will be able to benefit in many ways with this type of lighting.   Factory:  Welcome to visit our website: www.anyhopetech.com
