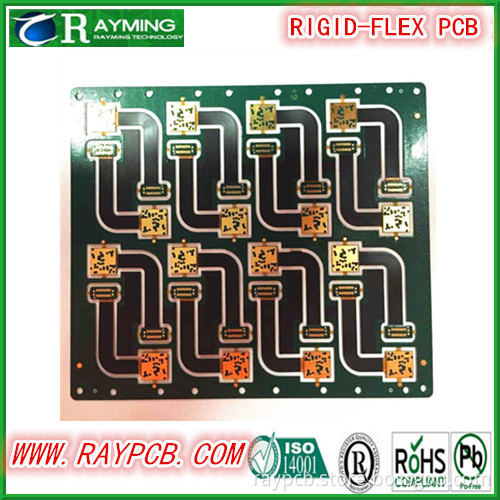

rigid flex pcb carbon plate

Welcome to RayMing Technology!!! Any question, pls feel free to contact Eva.     Quotation Tips:   1. Gerber files of the bare PCB board.   2. BOM (Bill of material) for assembly.   3. Testing Guide & Test Fixtures if necessary.   4. Programming files & Programming tool if necessary.   5. Schematic if necessary.

	Items	Capacity
1.	Single and double side SMT/PTH	Yes
2.	Large parts and both sides, BGA on both side	Yes
3.	Smallest chips size	0201
4.	Min BGA and Micro BGA pitch and ball counts	0.008in.(0.2mm)pitch, ball count greater than 1000
5.	Min leaded parts pitch	0.008in.(0.2mm)
6.	Max parts size assembly by machine	2.2in.*2.2in.*0.6in.
7.	Assembly surface mount connectors	Yes
8.	Odd from parts: Led resistor and capacitor networks electrolytic capacitors varlable resistor and capacitors(pots)sockets	Yes,assembly by hands
9.	Wave soldering	Yes
10.	Max pcb size	14.5in.*19.5in.
11.	Min pcb thickness	0.02
12.	Fiducial marks	Preferred but not required
13.	PCB finish	1.SMOBC/HASL 2.Electrolytic gold 3.Electroless gold 4.Electroless silver 5.Immersion gold/tin 6.OSP
14.	PCB shape	Any
15.	Panelized PCB	1.Tab routed 2.Breakaway tabs 3.V-Scored 4.Routed+V-Scored
16.	Inspection	1.X-ray analysis 2.Microscope to 20X
17.	Rework	1.BGA removal and replacement station 2.SMT IR rework station 3.Thru-hole rework station

  Product Show   Company Information   RayMing Technology Co.,Ltd was founded in 1997, is a high-teach enterprise specializing in the production of high-level,high-precision printed circuit boards. We have more than 10,000 square meters,with more than 500 professional employees,monthly capability is 40,000sqm,5000types.   Our Services     1.Comprehensive documents audit to prevent mistakes in PCB Gerber and Bom.
2.Suggest best quality replacement with lower price.
3.Engineering support for test and provide suggestions for mass production.
4.Suggest best shipment method.     Packaging & Shipping       Certifications
