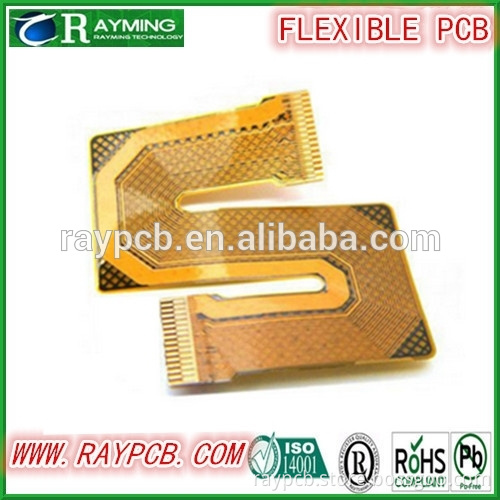

High Quality Custom Touch Panel FPC Board

Product Description

Item	Description
Layer	Flex board: 1-6Layers Flex-Rigid Board: 2-8Layers
Material	PI, PET, PEN, FR-4
Final Thickness	Flex board: 0.002" - 0.1" (0.05-2.5mm) Flex-rigid board: 0.0024" - 0.16" (0.06-4.0mm)
Surface Treatment	Lead-free: ENG Gold; OSP, Immersion silver, Immersion Tin
Max / Min Board Size	Min: 0.2"x0.3" Max: 20.5"x13"
Min Trace Width / Min Clearance	Inner: 0.5oz: 4/4mil Outer: 1/3oz-0.5oz: 4/4mil 1oz: 5/5mil 1oz: 5/5mil 2oz: 5/7mil 2oz: 5/7mil
Min Hole Ring	Inner: 0.5oz: 4mil Outer: 1/3oz-0.5oz: 4mil 1oz: 5mil 1oz: 5mil 2oz: 7mil 2oz: 7mil
Copper Thickness	1/3oz - 2oz
Max / Min Insulation Thickness	2mil/0.5mil (50um/12.7um)
Min Hole Size and Tolerance	Min hole: 8mil Tolerance: PTH±3mil, NPTH±2mil
Min Slot	24mil x 35mil (0.6x0.9mm)
Solder Mask Alignment Tolerance	±3mil
Silkscreen Alignment Tolerance	±6mil
Silkscreen Line Width	5mil
Gold Plating	Nickel: 100u" - 200u"	Gold: 1u"-4u"
Immersion Nickel / Gold	Nickel: 100u" - 200u"	Gold: 1u"-5u"
Immersion Silver	Silver: 6u" - 12u"
OSP	Film: 8u" - 20u"
Test Voltage	Testing Fixture: 50-300V
Profile Tolerance of Punch	Accurate mould: ±2mil
	Ordinary mould: ±4mil
	Knife mould: ±8mil
	Hand-Cut: ±15mil

  Factory Capacity      Product photo:             Packaging & Shipping         Our Services  1.PCB Favricate  2. buy components    3.assembly components    4. PCB layout if provide the schematic    5.Copy PCB Board if provide sample    6.Test PCB ,PCBA funcation if provide test method.       Company Information About us :  Our company webiste : wwww.raypcb.com   RayMing Technology Co.,Ltd was founded in 1997, is a high-teach enterprise specializing in the production of high-level,high-precision printed circuit boards. We have more than 10,000 square meters,with more than 500 professional employees,monthly capability is 20,000sqm,5000types.   Advantages:    1. With 15 years experience in PCB industry, we can manufacture high quality and competitive price products;    2. Specialized in 1-28 layers boards in prototype, quick-turn and small-medium, which including High Frequency, HDI, Impedance Controlled Board and Heavy Copper PCBs and etc;    3. The shortest lead time for double-sided board in 24 hours, and for 4-10 layers board 48 hours;    4. Obtained the certification of ISO9001,ISO14000, TS16949, ROHS,UL and SGS. All products strictly comply with IPC class 2,and can meet you Class3.   Please send us PCB files or gerber data so that we can quote for you                Certification:           FAQ   Quotation Tips(one of them ): 1. Gerber files of the bare PCB board. 2. BOM (Bill of material) for assembly. 3. Testing Guide & Test Fixtures if necessary. 4. Programming files & Programming tool if necessary. 5. Schematic if necessary. 6.provide sample if possible .
