Wired 3 Beams Digital Active Intrared Detector With 8 Channel Frequency Conversion

Specifications 1. 3 Beam Detector

2. Digital Active Infrared

3. Outdoor / Indoor installation

4. Multi detection range / distance option

3 Beams Digital Active Infrared Detector    Features:   1. Adopt Coaxial Aspherical Dual-Focus Exact Optical Focusing Lens 2. 8 Sections Digital Frequency Conversion 3. Wired System / BUS System Compatible / Holographic Spot Real-Time Report 4. Dynamic Frequency Analysis / Intelligent Alarm Linkage 5. Full Function Checking / Self-Adaption in Environment and Trouble Locking 6. Unique DSP Chip / Patented Multi-Dimensional Mistake-Corrective Code / True Detection Alarm Technology 7. Intelligent Rain / Fog Recognition Function 8. Patented Balanced Checking / Unique Digital Filtering 9. Transmission Power can be Adjusted Intelligently 10. Adjust Beams without Open Outer Case 11. External Power Adapter / Bracket (Optional)

Model No.	ABE-50F	ABE-100F	ABE-150F	ABE-200F	ABE-250F
Outdoor Detection Distance	50m	100m	150m	300m	250m
Indoor Detection Distance	150m	300m	450m	750m	750m
Number of Beams	2	2	2	2	2
Working Current	40mA	55mA	55mA	65mA	65mA
Long-life Mode	20mA	30mA	30mA	35mA	35mA
Light Source	Infrared Digital Pulse Mode / 8 Sections Frequency Conversion
Response Speed	50 ~ 700ms Adjustable
Alarm Output - Normal	Normally Close (NC) / Normally Open (NO) / Contact Capacity AV/DC  30V/0.5mA
Alarm Output - BUS	RS-485 / MA Bus Across Wave Carrier Model
Working Voltage	DC 9 ~ 24V / AC 11 ~ 18V
Environment	Temperature -25°C ~ 65°C / Humidity 5% ~ 95% (RH)
Fog Immunity	Visibility≥5m / Effective Protect Distance≥90%
Tamper Output	Normally Close (NC) / Contact Capacity AV/DC  24V/0.5mA
Adjust Angle	Horizontal 180°(±90°) / Vertical ±10°

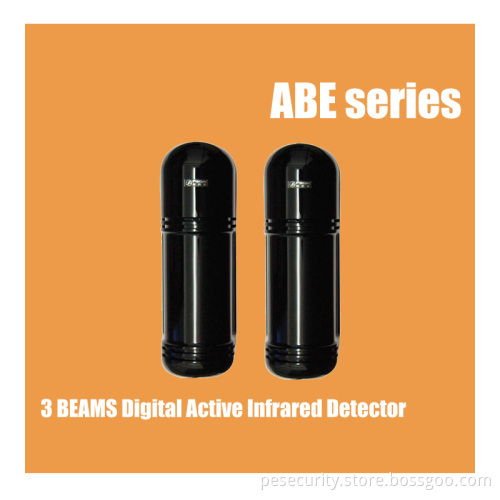

    Product Photo     Our Services * From sells the date for 12 months, under the normal using of product by the user, if appears in the product quality or functions problems, and belongs to the normal warranty scope of product. We 'll offer 12 month to guarantee the free cost service.   * As for the product exceed to 12 months, in the maintenance, if any small components have problems, such as resistor,  buzzer, capacitor, our company will provide free cost materials. If any main components have problems, such as PC boards, Chips, We 'll quote the basic components price and confirm to you in advance, then for product maintenance. If the product stop the production and have no materals to offer. We 'll return back the origninal product to customers. We 'll suggest every customer to send email for inquiry first then return back your goods.   * Our company will return the repair products within 15 days as soon as we receive your goods( exclude the weekend)   Company Information  Shenzhen Meian Technology Company is a manufacturer specializing in the research, manufacturing, marketing of safety alarm systems, CCTV monitor system, smart home system and automobile articles, with strong design, manufacturing ability, we got ISO9001:2000, CE, CCCs certificate, we have built up a world wide brand Focus in security industry. our product such as beams detectors motion detector, control panel and CCTV cameras are exporting in large quantities to overseas market all over the world, and we build up long time and friendly cooperation with dealers as well as overseas manufacturer for distributor, OEM/ODM service, to be the fixed supplier for army security products or some European countries, as well as American, Middle east, Asia, Australia ect.
