3pcs 3w puck cabinet light with driver dimmable

    CREE 3W LED cabinet light FT-300:   Technical Specifications

Item	Specification
Product Number	FT-300-1W3
Light Source	3*1W CREE LED/EDISON LED/LED nominated by customer
Power	3W
Lumen Flex	270LM
Input Current	12V DC/350mA constant current
Color	White/warm white/red/green/blue
Color Temperature	Warm White:2800-3300k/Cool white:6000-6500k
Working Temperature	45 degrees Celsius at room temperature 25 degree Celsius
Color Rendering Index	CRI > 75
Beam Angle	110 degree
Dimension	∅69.2 * (H)13.5mm
Ambient Temperature	-40~50 degree celsius
Material	Aluminium
Surface Finish	Silver/White painting
Package	Net weight:0.095kg      Gross weight:0.115kg Inner box size:8.5*8.5*3.5cm Outer carton size:45*45*16.5cm Quantity per carton: 100 pcs
Certification	CE,ROHS

   Lumen Output

Item-Number	Led Type	Color Temperature	Lumen Output
FT-300-C1W3-M	CREE	2800-3300k	240lm
FT-300-C1W3-W	CREE	6000-6500k	270lm
FT-300-1W3-M	Edison	2800-3300k	210lm
FT-300-1W3-W	Edison	6000-6500k	240lm

    Advantages   Adopt high power LED,having high brightness,no radiation,no flickering,saving energy Maintenance free, easy installation Long lifetime 50,000+hrs(5+years) Eco-friendly:no UV or RF interface,no Mercury or Lead Surface mounted with screws   Application

Jewelry Store	Museum	HouseHold
Cabinet light	Display case	Walkway
Hotel	Restaurant	Entertainment places

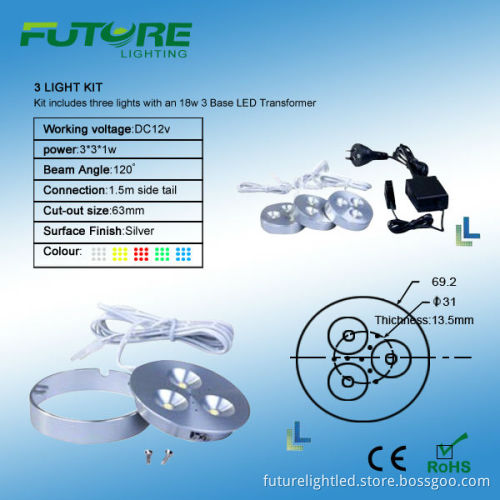

          Dimension Diagram       Wire Connecting Diagram       Important Notice:   Before switching on the power,please make sure all the connectors and wires are connected tightly.   Any poor connection or wrong way of operation may cause the damage of LED by instant higher voltage.   Recommened to use constant current LED driver with protective function to avoid any damage caused by poor connection or wrong way of operation.   B.   12V DC Supply         Important Notice:   The total power consumption of the lights connected should be less than 90% of the max load of the power supply.   Trade Terms   Payment: T/T, L/C,Paypal,Western Union Production lead time for 100-500pcs: 10 days, 500-10000pcs: 15 days Sample can be delivered in 3 days Shipping freight are quoted under your requests Shipping port: Shenzhen, Mainland China MOQ: 10pcs   Our Service   Your inquiry related to our products or prices will be replied in 24hrs Well-trained and experienced staffs to answe all your enquires in fluent English OEM&ODM, any your customized lightings we can help you to design and put into product Distributoership are offered for your unique design and some our current models Protection of your sales area, ideas of design and all your private information
