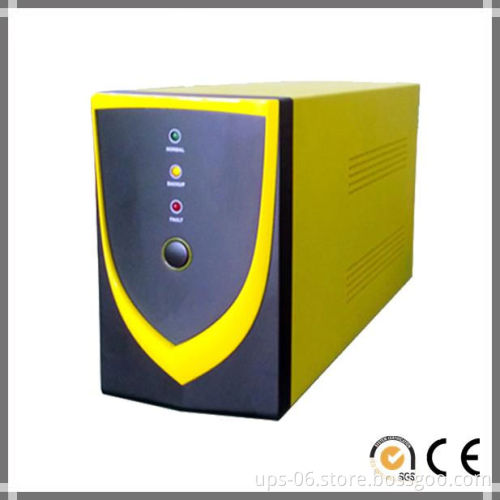

RBK Small Power RS232 UPS 600W 1500W For home

Specifications 1 Small Power RS232 UPS 600W 1500W

2.Regulation the output voltage

3.Wide input voltage range

4.RS232 USB PORT

  RBK Small Power RS232 UPS 600W 1500W For home                                                                             Feature .1.wide voltage range ,AVR function  2.cold start function  3.intelligent CPU control  4.SMD technology to save space  5.Both audible and lamp alarm functions  6.intelligent battery management 7.RS-232 communication inter face and USB(optional)

Model No.		600N	800N	1000N	1500N
Power capacity (VAW)		600VA/360W	800VA/480W	1000VA/600VA	1500VA/900W
Input
nominal voltage		120VAC/230VAC
Voltage range		85-140VAC/140-300VAC
Frequency Range		50hz or 60HZ±5HZ(auto sensing)
output
Voltage		120VAC/230VAC±10%
Frequency		Sync to input (line mode)50HZor60HZ±0.1%(battery mode)
Waveform type		Modified sinewave
Auto Transfer		after overload recovering 100%load
Crest power		3 times of rating
Power factor		>0.6
Batteries
Type		Maintenance -free sealed Lead-Acid battery
Nominal DC voltage		12VDC		24VDC
Eastimated Runtime (minutes )100wload		20	29	45	75
Recharging time		8hours to 90% of full capacity
transfer time		<6 ms (standard mode0
Protection		overload ,low battery ,surge (customer-made)
Led Display		Operation mode(online -green,battery-yellow,fault-red)
Audible Alarm		battery mode ,low battery ,overload ,battery repalcement,fault
Output Sockets		NEMA5-15 (or IEC320×2pcs)		NEMA5-15 (or IEC320×2or4pcs)
Communications management
interface port		RS-232/USB(Customer-made)
Enviromental
Operation enviroment		0-40°C
Relative humidity		0-95%(non-condensing
Audible Noise		<40db
Physical
Netweight		6	6.5	13.8	14.2
dimension,D×W×H		315*85*139(MM)		338*123*185(mm)
Application		computer center in power plant or converting station
