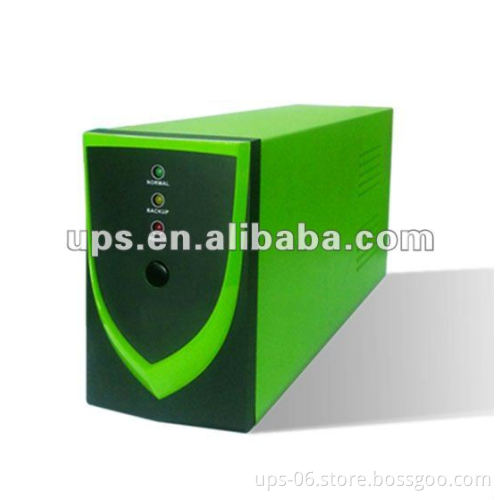

OFFLINE UPS / Computer UPS / Home UPS with AVR function (500VA-1500VA)
- Delivery Time:
- 25 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
RS-232 communication interface and USB(optional)
1000VA~2000VA PC OFFLINE UPS The KS series are Ideal for PCs, Workstations and POS systems. Not only do they protect against blackouts,sags and surges but with the added feature of AVR these UPS ensure that ony clean and safe crrents reach your equipment. Features: Microprocessor control guarantees high reliability
Equipped with Boost and Buck AVR to stabilize input voltage
Built-in DC start function enables UPS to be started up without AC power supplied.
Smart RS-232 Communication Port with Free Download Software from the Internet.
Auto restart while AC recovery.
Compact size, light weight
Provides Modem/Phoneline Surge Protection.
Provides Overload Protection.
USB Option Specification
MODEL |
| KS1000 | KS 1500 | KS2000 |
CAPACITY | VA/W | 1000VA/600W | 1400VA/840W | 2000VA/1200W |
INPUT | Phase | Single | ||
Voltage | 115VAC or 220/230/240VAC | |||
Voltage Range | 85-140VAC / 162-290VAC +/- 5% | |||
Frequency | 50Hz / 60Hz (Auto Sensing) | |||
Frequency Range | 45~55 Hz / 55Hz~65Hz | |||
OUTPUT | Phase | Single | ||
Voltage(Btt. Mode) | 115VAC or 230 VAC | |||
Voltage Regulation(Batt. Mode) | ±10% | |||
Frequency | 50Hz or 60Hz | |||
Frequency Regulation (Batt. Mode) | +/-1 Hz | |||
Output Waveform | Modified Sinewave | |||
Power Factor | P.F. | 0.6 | 0.6 | 0.6 |
BATTERY | Battery Type & Number * | 12V/7AH x 2pcs | 12V/9AH x 2pc | 12V/9AH x 2pc |
Back up Time (at a 2 PC load with 15" monitor) | 18~20 minutes | 25 minutes | 18~20 minutes | |
Recharge Time | 8 hours to 90% after complete discharge | |||
TRANSFER TIME | Typical | 4-6ms | ||
INDICATOR | AC Mode | The 1st green LED lighting; | ||
Battery Mode | The 1st green LED flashing every 10 seconds; | |||
Fault | Red LED lighting | |||
Battery Replacement | The 1st green LED flashing every seconds | |||
Overload | The 1st green LED flashing every 0.5 second | |||
AUDIBLE ALARM | Battery Mode | Sounding every 10 seconds | ||
Low Battery | Sounding every second | |||
Overload | Sounding every 0.5 second | |||
Battery Replacement | Sounding every 2 seconds | |||
Fault | Continously sounding | |||
PROTECTION | Full Protection | Discharge, overcharge, and overload protection | ||
PHYSICAL | Dimension, DXWXH (mm) | 146*160*349 | 368.3*140.2*180.4 | 368.3*140.2*180.4 |
Net Weight (kgs) | 13.8 | 14.2 | 16 | |
ENVIRONMENT | Operating Environment | 0~40 Degrees Centigrade, 0~90% relative humidity (non-condensing) | ||
Noise Level | AC Mode: Less than 40dB | |||
INTERFACE | Smart RS-232 | Support Windows family, Linux, IBM Aix, Sun Solaris, Compaq True64, UnixWare, FreeBSD, HP-UX, and MAC | ||
