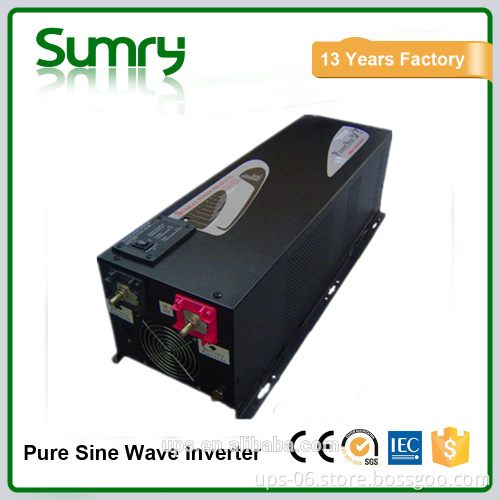

Pure Sine Wave Home Inverter Home Inverter Pure Sine Wave Inverter with Charger 1000W-12000W

Pure Sine Wave Home Inverter Home Inverter Pure Sine Wave Inverter with Charger 1000W-12000W

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Pure Sine Wave Home Inverter Home Inverter Pure Sine Wave Inverter with Charger 1000W-12000W 1. Features 1. Solar power or gird power or generator input, Pure sinewave output 2. CPU control and fan temperature control 3. Optional battery or gird power priority manual select 4. Protection of over-voltage,low-voltage, over-temperature and over-load,shout-circuit, 5. Intelligent battery management with protection against over-charged and over-discharged etc. 2. Specification

MODEL	1000w	2000w	3000w		4000W	5000w	6000w
Input Voltage Waveform	Sinusoidal (utility or generator)
Nominal Input Voltage	230Vac
Low Line Disconnect	184Vac±4%
High Line Disconnect	253Vac±4%
Max AC Input Voltage	270Vrms
Nominal Input Frequency	50Hz/ 60Hz (Auto detection)
Over-Load Protection (SMPS load)	Circuit breaker
Output Short Circuit Protection	Circuit breaker
Efficiency (Line Mode)	>95%
Transfer Switch Rating	30A
Transfer Time (Ac to Dc)	20ms (typical)
Output Voltage Waveform	Sine wave
Rated Output Power (W)	3000W
Power Factor	0~1.0
Nominal Output Voltage (V)	230Vac
Output Voltage Regulation	±10% rms
Nominal Efficiency	>80%
Nominal DC Input Voltage	12V	12V	12V		24V	24V	24V
Nominal Charge Current	70A	70A	70A		35A	35A	35A
Charge Current Regulation	± 5Adc
Battery initial voltage	0 –15.7 Vdc (can operate with 0V battery)
Communication:	RJ11 (Used for factory testing. No customer interface available)
Safety Certification	Compliance with UL458			CE(EN60950)
EMI Classification	FCC, CLASS A			EN50091-2, CLASS A
Operating Temperature Range	0°C to 40°C
Storage temperature	-15ºC ~ 60ºC
Operation humidity	5% to 95%
Audible Noise	60dB max
Cooling	Forced air, variable speed fan
