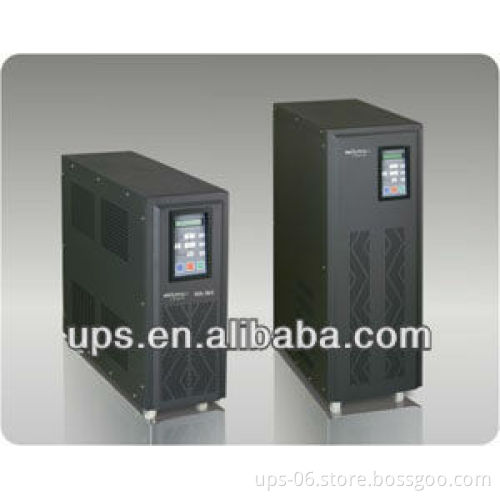

INDUSTRY online UPS with IGBT (1:1): G-MD 8KVA/6.4KW

Get Latest Price

Delivery Time:: 20 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications Idustrial online UPS:True online double conversion with all power protection,advanced battery management;Optional SNMP card.

Model No.	1KS/N	2KS/N	3KS/N	4KS/N	6KS/N	8KS	10KS	12KS	15KS
Power Capacity(VA/W)	1K/0.8K	2K/1.6K	3K/2.4K	4K/3.2K	6K/4.8K	8K/6.4K	10K/8K	12K/9.6K	15K/12K
Input
Nominal Voltage	120VAC/230VAC
Voltage Range	85-135VAC/150-310VAC
Frequnency Range	50Hz or 60Hz ±5%
Power Factor	>0.97
Phase	Single Phase + GND
Max I/P current(120V)	12A	20A	28A	48A	68A	90A	112A	130A	168A
Max I/P current(230V)	6A	10A	14A	24A	34A	45A	56A	65A	84A
Output
Voltage	120VAC/230VAC±1%
Frequnency	Sync to input(line mode),50Hz or 60Hz±0.05
Waveform Type	pure sinewave
Phase	Single Phase + GND
Voltage Distortion	≤3% for linear load
Overload Capacity	110%-150% for 5 minutes or >150% for 300ms then transfer to bypass & alarm
Power Factor	>0.8
Auto Retransfer	After overload recovering 100% load
Crest Power	3 times of ratings
Batteries
type	Maintenance-free sealed Lead-Acid battery
Nominal DC Voltage	48VDC(192VDC optional)			192VDC
Charging Time	8-10 hours for 90% capacity after full discharge
Transfer time	0 ms(line to battery mode)
Protections	overload,short circuit,over temperature,surge,line abnormal
Display
LED	Operation mode(online,battery,bypass),battery capacity,abnomal,overload
LCD	I/P voltage & frequency,battery volt,O/P voltage & frequency,
	load percentage,Operation mode,temperature inside
Efficiency	>0.85 for whole unit
Comunications & Management
Interface Port	RS-232
Intelligent Slot	SNMP Card (optional)
Enviromental
Operation Enviroment	0-40°C
Storage Enviroment	-25°C~55°C
Relative Humidity	0-95%RH(non-condensing)
Audible Noise	<55dB
Physical
Net/Gross Weight(KG)	46/56	63/78	75/90	65/85	69/89	88/118	100/130	120/140	150/175
Dimension,DxWxH(mm)	530x200x460	600x200x490		580x220x540			580x220x700	590x300x870	670x410x935
for "S" type
Dimension,DxWxH(mm)	530x200x600	580x220x700
for "N" type
*Specifications are subject to change without prior notice.
