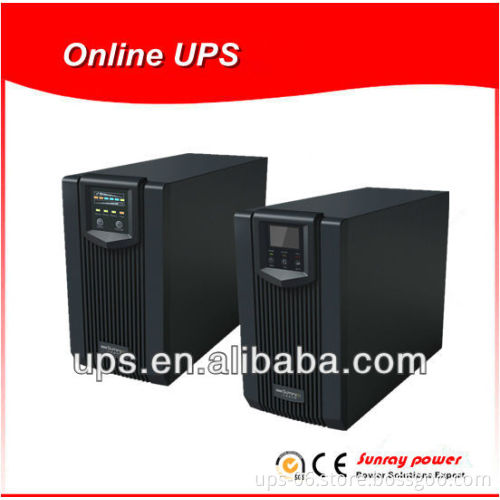

2000va online ups 110v 220v with double conversion 1-3KVA
- Delivery Time:
- 25 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
Fully digitized microprocessor control,
Wide input range,
Fan speed automatic
2000va online ups 110v 220v : Key Features 1) Wide input voltage range 2) UPS start up without battery 3) Cold start 4) Advanced battery management 5) Automatic battery charging in UPS off mode 6) Lightning and surge, Short circuit and overload protection 7) Battery voltage display 8) EMI/RFI noise filter 9) Smart RS232 with monitoring software and SNMP 10) EPO function(optional) Technician parameter
Product Series | B Series | |||
Model | BC1K/1KS | BC2K/1KS | BC3K/1KS | |
Rated Power | VA/W | 1kVA / 0.7kW | 2kVA / 1.4kW | 3kVA / 2.1kW |
Input | Nominal Voltage | 220VAC | ||
Voltage Range | 115 ~ 300VAC | |||
Frequency Range | 46~54Hz(default), user adjustable within 40~60Hz | |||
Power Factor | 0.97 | |||
Output | Voltage | 220VAC ± 2% | ||
Frequency | 46~54Hz or 50Hz ± 0.2Hz (Line mode) | |||
Waveform | Sine Wave | |||
Distortion | 3% | 4% | ||
Overload Capability | 108%~150% for 30 sec., ³150% for 300 ms | |||
Current Crest Ratio | 3:1 | |||
Battery | Type | Sealed, Maintenance free, Lead-Acid (Panasonic) | ||
Recharge Time | 5 hrs to 90% of capacity after full load discharge | |||
| Bypass
| Automatic Transfer | on overload and UPS failure | ||
Before UPS Power-on | Default NO, user adjustable to YES | |||
Voltage Range | 80~264VAC (Default), user adjustable within 80~286VAC | |||
Transfer Time | 0 ms; less than 4 ms from inverter to bypass and vice versa | |||
LCD Indicators | Status | Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault | ||
Audible Alarm | Bypass, On battery mode, Battery low, Overload, Fault | |||
Acoustic Noise | At 1 meter distance | 45 dBA | 50 dBA | |
Communications | DB-9 Port | RS-232 Serial Interface | ||
Intelligent Slot | Options: WebPower, AS400 Card or WinPower CMC | |||
Environmental | Operating Temperature | 0 ~ 40°C | ||
Operating Humidity | 20 ~ 90% non-condensing | |||
Weight | Net (Kg) |
|
|
|
Dimensions | W x D x H (mm) |
|
|
|
