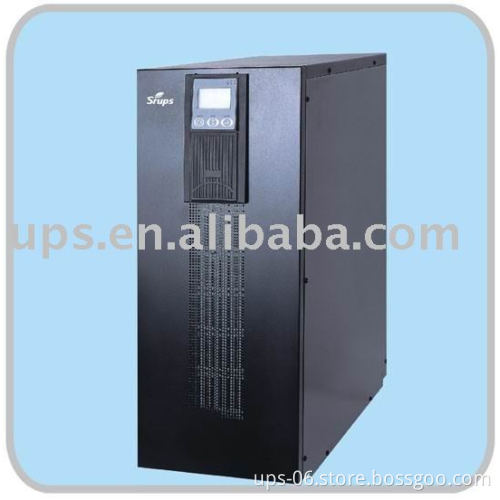

Inform online ups working / 1000v 6-20KVA

BS-EX 20KS

BS-EX 30KS

BS-EX 40KS

Input:

Supply voltage (V)

3AC/N, 400V, +15%/-25%.

(-15% to –30% at derating)

Input Phases

3 phase + N

Nominal frequency

50/60Hz   [selectable]

Frequency tolerance (%)

+/- 10%

Power factor @ nominal input voltage

> 0.95

Input current distortion(%)

< 8% standard  < 5% option

Inrush Peak current (A)

≤ 1 x Inom.

Battery:

Battery nominal voltage

288Vdc

(26Ah x 24pcs)

384Vdc

(26Ah x 32pcs)

384Vdc

(26Ah x 32pcs standard,

34Ah x 32pcs option.)

Minimum final discharge voltage

252Vdc

336Vdc

336Vdc

Max. charge current

5A (standard)

10A (option)

Static Voltage tolerance

1%

Output:

Rated apparent power(kVA)

20kVA

30kVA

40kVA

Rated active power (kW)

16kW

24kW

32kW

Output Power Factor

0.8

Overload:

 125% load

10 minutes (Ta: 0 ~ 25 degree C)

 5 minutes (Ta: 26 ~ 40 degree C).

 150% load

60 seconds (Ta: 0 ~ 25 degree C)

 30 seconds (Ta: 26 ~ 40 degree C)

Output short-circuit:

300% load @ 50Hz, 10m sec.

150% load @ 50Hz, 5 sec.

Output voltage rating

3AC/N 400V, 380V or 415V parameterizable.

(Default: 400 Vac.)

Output frequency

50/60Hz.

Frequency tolerance:

Self-clocked

Line-clocked

± 0.1%

± 1 % (adjustable to ±2%, 3%, or 4%)

Output voltage tolerance:

Static

± 1% at balanced load.

± 3%, at 50% unbalanced load.

± 4%, at 100% unbalanced load.

dynamic

± 6.5% at 100% step.

Output voltage distortion

Linear full load

Non-linear full load

< 2 %

< 8 %

Permissible non-linear load.

100%

Load peak factor without derating

3

UPS data:

AC/AC efficiency

91% (Typical)

Maximum noise level @ 1 meter (dBA)

20kVA <= 54.6 dBA

30kva/40kva <= 56.7 dBA.

EMC class

EN62040-2(2006), Class C2

(Class C3 for Field Trial Units)

Degree of pretection

IP21

Dimensions:

20kva: H x W x D = 1400mm x 500mm x 822mm

30kva/40kva: H x W x D = 1600mmx 550mm x 822mm

Net Weight (kg)

(without battery inside UPS)

20kva = 113KG

30kva = 184 kg

40kva = 187 kg

Frame color (RAL scale)

RAL scale 7016(dark gray)

Cooling

Forced (built-in fan)

Equipment mobility

On casters

Environmental:

Operating:

0 ~ 40 degree C

Maximum relative humidity @ 20 degree.

Acc. To EN 62040-3

  Installation altitude:

Up to 1000m above sea level.
