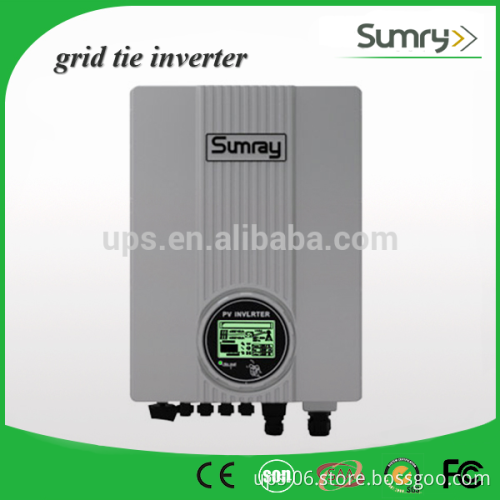

IP65 Grid tie solar inverter 1000w, 1kw on grid solar inverter with mppt tracker

IP65 Grid tie solar inverter 1000w, 1kw on grid solar inverter with mppt tracker

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

IP65 Grid tie solar inverter 1000w, 1kw on grid solar inverter Feature

Model Specification	1000SS-UE	1600SS-UE	2000SS-UE	2500SS-UE	3000SS-UE	3600SS-UE	4200SS-UE	5000SS-UE
Input Data
Max.DC Power	1300w	1900W	2300W	2800W	3200W	3800W	4400W	5000/5200W
Max.DC voltage	500V	500V	500V	500V	500V	600V	600V	600V
Start Voltage	70V	100V	100V	100V	100V	100V	100V	100V
DC nominal voltage	360V	360V	360V	360V	360V	360V	360V	360V
PV voltage range	70v-500v	100V-500V	100V-500V	100V-500V	100V-500V	100V-600V	100V-600V	100V-600V
Max.input current of trackers	10A	10A	12A	12A	15A	15A	20A	20A
Number of MPPT tracker	1	1	1	1	1	1	1	1
Output (AC)
Nominal AC output power	1000w	1600w	2000w	2500w	3000w	3600w	4200w	4600/5000w
Max.output current	5A	8A	10A	12.5A	15A	18A	21A	23A
AC nominal voltage	220V/230V/240V
AC voltage range	180vac-280vac
Displacement power factor	1	1	1	1	1	0.8leading…	0.8leading…	0.8leading…
THDi	<3%
AC connection	Single phase
Efficiency
Max.efficiency	96.00%	96.00%	96.50%	97.00%	97.00%	97.00%	97.10%	97.10%
Euro-eta	96.00%	96.00%	96.50%	96.50%	96.50%	96.50%	96.50%	96.50%
MPPT efficiency	99.50%	99.50%	99.50%	99.50%	99.50%	99.50%	99.50%	99.50%
Protection Devices
DC reverse polarity protection	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
DC switch rating for each MPPT	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Output overcurrent protection	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Output Overvoltage Protection-Varistor	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Integraged all-	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
pole senstive leakage current
Groud fault monitoring	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Grid monitoring	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
General Data
Dimensions(WHD)	329mm370mm150mm					370mm423mm172mm
Weight	11.9KG	12KG	12.3KG	12.4KG	12.4KG	18KG	18KG	18KG
Operating temperature	-25℃---+60℃(-13…+140℉) A27 with derating above 45℃(113℉)
Range
Altitude	Up to 2000m(6560ft) without power derating
Consumption: operating(standby)	< 5W	< 5W	< 5W	< 5W	< 5W	< 5W	< 5W	< 5W
Consumption at night	< 0.5W	< 0.5W	< 0.5W	< 0.5W	< 0.5W	< 0.5W	< 0.5W	< 0.5W
Cooling concept	Natural	Natural	Natural	Natural	Natural	Natural	Natural	Natural
Environmental Protection	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Features
Interfaces RS-485/ RS-232	yes/yes	yes/yes	yes/yes	yes/yes	yes/yes/	yes/yes/	yes/yes/	yes/yes/
Interfaces Wi-Fi/SD-Card	opt/opt	opt/opt	opt/opt	opt/opt	opt/opt	opt/opt	opt/opt	opt/opt
Warranty 5 years	yes	yes	yes	yes	yes	yes	yes	yes
Warranty 10 years	opt	opt	opt	opt	opt	opt	opt	opt
Certificates and approvals	CE,IEC62109,VDE0126-1-4,VDE-AR-N4105,RD1663,G59,G83,AS4777,AS/NZS 3100.CGC
