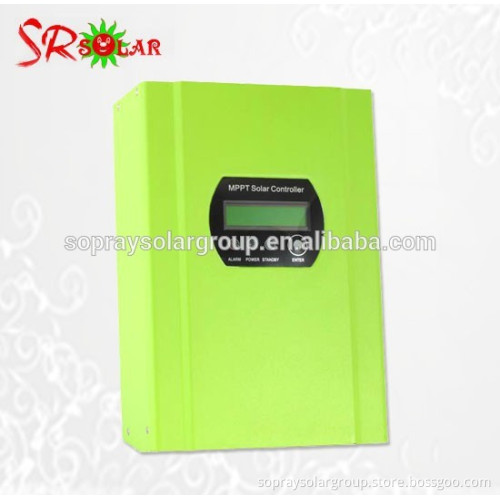

30A mppt solar charge controller

  Product Description   30A mppt solar charge controller   Main characterastics:   1. MPPT charging mode, conversion efficiency up to 99%, 30%~60% higher than PWM controller. 2.  DC12V/24V/48V battery system automatic recognition, convenient for user to use it in different systems 3. DC12V/24V/48V system, maximum PV input voltage up to DC100V. 4. Charge type: three-stage charge (fast charge (MPPT), constant voltage, floating charge), can effectively prolong the battery’s service life 5. Three discharge modes: always-on mode and always-off mode, PV voltage(sunlight) controlling mode 6. Can charge 4 kinds of commonly used batteries: Sealed lead acid, vented, Gel, NiCd and other customized batteries. 7.  Digital tube display: battery voltage and charging current. Upper computer can display various parameters such as model #, PV input voltage, battery type, battery voltage, charging current, charging power, working status, etc. 8.  RS232 communication and communication protocol can be provided, convenient for customer’s integration management of the controller 9. Unlimited parallel connection 10. CE, RoHS, FCC approval; (We can help customer with other approvals).   Parameters of mppt solar charge controller:

Types	Main Features
Smart-12/24/48V-30A (blue and green)	System Voltage		2V/24V/48V System Auto Recognition
	PV Input Voltage Range	DC12V system	DC14V~DC100V
		DC24V system	DC30~DC100V
		DC24V system	DC60~DC100V
	Maximum PV Input Power	DC12V system(W)	284
		DC24V system(W)	568
		DC48V system(W)	1136
	Rated charge current	DC12V/24V/48V	30A
	Charging Mode	MPPT	Precision,Scientific,Stable and Efficient Power Tracking
	Charging Efficiency	Maximum efficiency	99%
	Discharge Mode	Three stages charge	Fast charge,constant charge,floating charge
	Discharge Mode	Smart controller	On mode,  Off  mode, PV voltage control mode
	Discharge Power	DC12V/24V/48V	30A
	Barrtery Types	Optional types	Vented ,Sealed,Gel,NiCd
		User-Defined	User can use PC software define special battery charging
	Display	Products	LED
	Communication	RS232	PC software,testing software
	Standby parts	Controller /Hanging buckle/Temperature sensing Wires/ PC communication Wires/Softwar

    Pictures:         Packaging & Shipping   size:  205*168*60mm packaging size:  265*196*110mm N.W(KG): 1.8 G.W(KG): 2   Company Information SOPRAY SOLAR GROUP LIMITED( SR-SOLAR brand) is a vertically integrated manufacturer of solar panel, solar power station and solar street light . Almost 90% products are being exported to Southeast Asia, the Middle East, north and South America, parts of Europe and Africa. In order to keep our high quality and competitive advantages on the international market, we have a strict quality control system, which complies with the ISO, CE, MCS, UL, IEC and TUV international standards for every step of the production process.   We are always customer-oriented, with a flexible and fast after-sales service, offering to customers best quality products and sustainable support as a reliable partner for establishing a long-term win-win business relationships with all interested partners.   Your demand is our pursuit!Look forward to your calls.   Our Services
