high efficiency 7kw off grid solar power inverter solar converter

Get Latest Price

Delivery Time:: 15 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

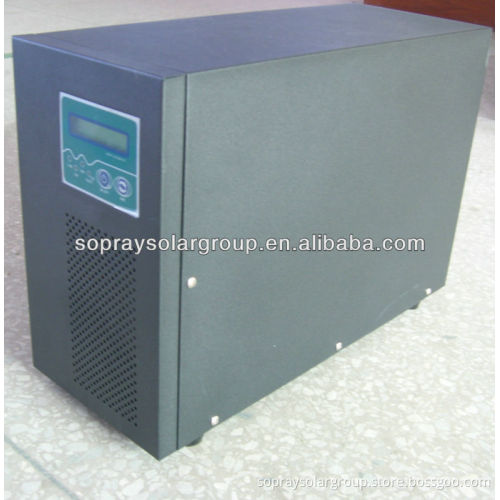

high efficiency 7kw off grid solar power inverter converter

	Model	SR-IV7000	SR-IV8000	SR-IV10000	SR-IV12000
Input	Rated capacity(W)	7000W	8000W	10000W	12000W
	Commercial Power range(VAC)	100/110/120/127/220/230(+25%,-35%)
	Frequency(Hz)	60/50±10%
Output	AVR voltage range(VAC)	100/110/120/127/220/230±10%(Auto-sensing)
	Transfer time	15ms
	Waveform	(sine)
	Frequency	:60/50±0.5 Commercial power supply: shared frequency with the commercial inversion state:60/50±0.5
protection	overload	100-120%30;> 120%,100 >150% ,50 <150 Input/output over high or low protecting; low battery protecting; surge and pike-currents protecting; overload protecting 100%-120% 30sec; >120% 100ms; >150%, 50ms output short circuit <150ms
Battery	DC Voltage	96/192VDC
	TYPE	Sealed, maintenance-free lead acid
	Recharge current	20A(Maximum)
	Battery protection	Automatic self-test, discharge protection, over-charging protected, smart management system.
Appearance	External Size(mm) D×W×H	660280690
	Size(mm) D×W×H	760380900(1piece)
Net weight(kg)		90	95	110	120
Gross weight(kg)		95	100	120	130

Our services 1, Replying your inquiries in 24 working hours 2, Customized design is available, OEM is welcomed. 3, Delivery our goods to our customer all over the world with speed and precision. 4, Offer customer the lowest price with high quality solar panels. Other related products
