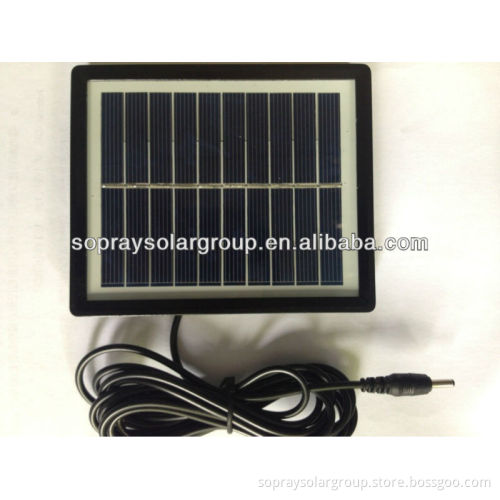

2015 newest 3W high efficiency small solar panel for toys transparent solar panel

2015 newest 3W high efficiency small solar panel for toys transparent solar panel              our factory make mono/poly solar panels from 1w-320w,solar system, solar lights and so on.                 Materials of solar panel  1).Solar Cell------monocrystalline solar cell  2).Front Glass-------3.2mm, high transmission, low iron, tempered glss 3).EVA-------excellent anti-aging EVA 4).TPT-------TPT hot seal made of flame resistance 5).Frame------anodised aluminum profile 6).Junction Box-------lp54 rated, high quality, with diode protection Superiority: high quality anodexed aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resisance.   Quality assurance testing Thermal cycling test   Thermal shock test   Thermal/Freezing and high humidity cycling test   Electrical isolation test   Hail impact test   Mechanical, wind and twist loading test   Salt mist test   Light and water-exposure test   Moist carbon dioxide/sulphur dioxide     Electrical Characteristics               SR-Solar 3W Mono solar panel

SN	Item	Specification
1	Maximum Rated Power	3
2	Power Tolerance	±5
3	Maximum Power Voltage	9
4	Maximum Power Current	0.33
5	Open Circuit Voltage-Voc	10.8
6	Short Cricuit Current-Isc	0.4
7	Maximum System Voltage	1000
8	Cell Transfer Effienciency	17.9
9	Transfer Efficiency	15.5
10	Cell Number&Size	36 cells(125×125)in a 4×9 matrix connection in series
11	Cell Type	Mono Crystalline 125*125
12	Cable Type&Diameter	4mm2(12AWG),TUV
13	Connector Type	N/A
14	Juntion Box	IP65,1000VDC,TUV Certified
15	Number of Bypass Diodes and Type	2Nos,Schottky By-pass diodes
16	Maximum Series Fuse Rating	9
17	Temperature Coefficient of Power	-0.45
18	Temperature Coefficient of Voc	-0.35
19	Temperature Coefficient of Isc	0
20	Nominal Operating Cell Temperature-NOCT	45±2
21	Standard Test Condition	STC:AM=1.5,1000W/m2,Cells Temperature 25°C
22	Operating Temperature	-40~+85
23	DimensionA*B*C	225*155*18mm
24	Weight	0.52kg
25	Construction	Super Strate:High transission 3.20mm temperedlow iron glass;Substrate: WhiteBacksheet;Encapsulant:Fast Cure EVA
26	Frame	Clear anodized aluminum alloy type 6063T5;Color:Silver
