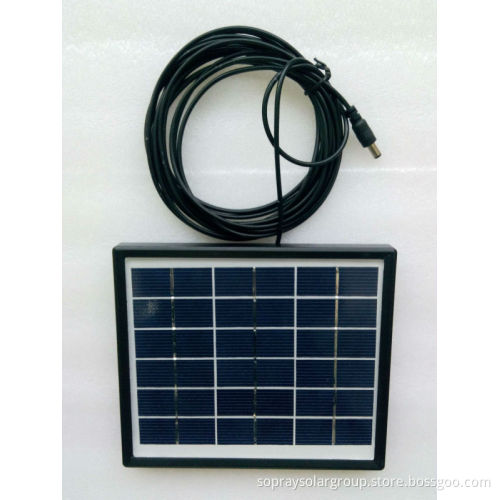

2014 hot selling top quality portable mini 3w solar panels for phones

       2014 hot selling top quality portable mini 3w solar panels for phones           our factory make mono/poly solar panels from 1w-320w,solar system, solar lights and so on.     Materials of solar panel    1).Solar Cell------monocrystalline solar cell 125*125mm   2).Front Glass-------3.2mm, high transmission, low iron, tempered glss   3).EVA-------excellent anti-aging EVA   4).TPT-------TPT hot seal made of flame resistance   5).Frame------anodised aluminum profile   6).Junction Box-------lp54 rated, high quality, with diode protection   Superiority: high quality anodexed aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resisance.     Quality assurance testing   Thermal cycling test    Thermal shock test    Thermal/Freezing and high humidity cycling test    Electrical isolation test   Hail impact test   Mechanical, wind and twist loading test    Salt mist test   Light and water-exposure test   Moist carbon dioxide/sulphur dioxide      Our services       1, Replying your inquiries in 24 working hours   2, Customized design is available, OEM is welcomed.   3, Delivery our goods to our customer all over the world with speed and precision.   4, Offer customer the lowest price with high quality solar panels.

SN	Item	Specification
1	Maximum Rated Power	3
2	Power Tolerance	±5
3	Maximum Power Voltage	9
4	Maximum Power Current	0.33
5	Open Circuit Voltage-Voc	10.8
6	Short Cricuit Current-Isc	0.4
7	Maximum System Voltage	1000
8	Cell Transfer Effienciency	17.9
9	Transfer Efficiency	15.5
10	Cell Number&Size	36 cells(125×125)in a 4×9 matrix connection in series
11	Cell Type	Mono Crystalline 125*125
12	Cable Type&Diameter	4mm2(12AWG),TUV
13	Connector Type	N/A
14	Juntion Box	IP65,1000VDC,TUV Certified
15	Number of Bypass Diodes and Type	2Nos,Schottky By-pass diodes
16	Maximum Series Fuse Rating	9
17	Temperature Coefficient of Power	-0.45
18	Temperature Coefficient of Voc	-0.35
19	Temperature Coefficient of Isc	0
20	Nominal Operating Cell Temperature-NOCT	45±2
21	Standard Test Condition	STC:AM=1.5,1000W/m2,Cells Temperature 25°C
22	Operating Temperature	-40~+85
23	DimensionA*B*C	225*155*18mm
24	Weight	0.52kg
25	Construction	Super Strate:High transission 3.20mm temperedlow iron glass;Substrate: WhiteBacksheet;Encapsulant:Fast Cure EVA
26	Frame	Clear anodized aluminum alloy type 6063T5;Color:Silver
