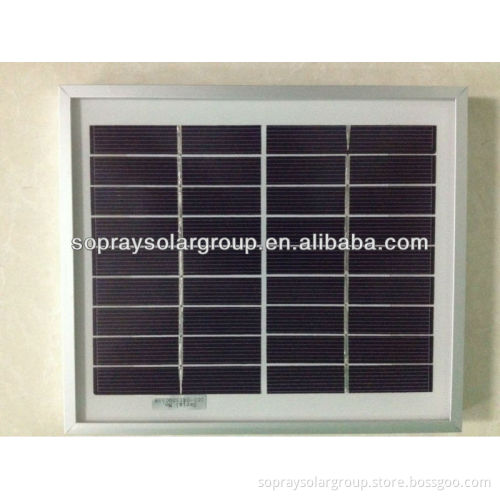

high quality 9v 3w small solar panel with aluminum frame

  Product Description   Hot selling high quality 9v 3w small solar panel      Materials of solar panel 1).Solar Cell------poly solar cell 2).Front Glass-------3.2mm, high transmission, low iron, tempered glss 3).EVA-------excellent anti-aging EVA 4).TPT-------TPT hot seal made of flame resistance 5).Frame------anodised aluminum profile 6).Junction Box-------lp54 rated, high quality, with diode protection Superiority: high quality anodexed aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resisance.   Features  1. High cell efficiency with quality silicon materials for long term output stability  2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures  3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance  4. Both Polycrystalline and Monocrystalline  5. Excellent performance in harsh weather  6. Outstanding electrical performance under high temperature and low irradiance     Electrical Characteristics                                 SR-Solar 3W Mono solar panel

SN	Item	Specification
1	Maximum Rated Power	3
2	Power Tolerance	±5
3	Maximum Power Voltage	9
4	Maximum Power Current	0.33
5	Open Circuit Voltage-Voc	10.8
6	Short Cricuit Current-Isc	0.4
7	Maximum System Voltage	1000
8	Cell Transfer Effienciency	17.9
9	Transfer Efficiency	15.5
10	Cell Number&Size	36 cells(125×125)in a 4×9 matrix connection in series
11	Cell Type	Mono Crystalline 125*125
12	Cable Type&Diameter	4mm2(12AWG),TUV
13	Connector Type	N/A
14	Juntion Box	IP65,1000VDC,TUV Certified
15	Number of Bypass Diodes and Type	2Nos,Schottky By-pass diodes
16	Maximum Series Fuse Rating	9
17	Temperature Coefficient of Power	-0.45
18	Temperature Coefficient of Voc	-0.35
19	Temperature Coefficient of Isc	0
20	Nominal Operating Cell Temperature-NOCT	45±2
21	Standard Test Condition	STC:AM=1.5,1000W/m2,Cells Temperature 25°C
22	Operating Temperature	-40~+85
23	DimensionA*B*C	185*160*17mm
24	Weight	0.52kg
25	Construction	Super Strate:High transission 3.20mm temperedlow iron glass;Substrate: WhiteBacksheet;Encapsulant:Fast Cure EVA
26	Frame	Clear anodized aluminum alloy type 6063T5;Color:Silver

Packaging & Shipping 1.Packaging: standard carton plus wooden case or pallet.
2.Shipping: (1). Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
                 (2). By air or by sea for batch goods.
3.Delivery: Goods to be ready within 10~15 days depending on order quantity.    Our factory pictures Our Services   Please contact us, we will guide you step-by-step about choosing the product according to your needs to deliver you the best quality product on very affordable installment rates.
