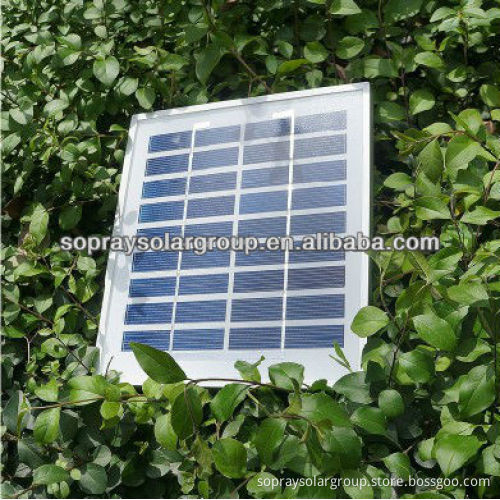

High quality 2w mini solar panel small poly solar panel

  High quality 2w mini solar panel small poly solar panel   Features: 1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance 3. Unique frame design with high mechanical strength for easy Installation.
4 Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest environmental conditions
6. Outstanding electrical performance under high temperature and low irradiance conditons
    Solar cells applications:
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Residential roof-top systems
4. Any commercial or industrial ground mount systems
5. Other industrial or commercial applications

Solar panel quality and warranty:
1. Peak power of single module in guaranteed in +-3%power tolerance.
2. Average power of modules in single order is guaranteed not less than the peak power
3. Rigorous quality control meets the highest international standard
5.5 years limited warranty on material and workmanship
6.10 years and 20 years limited warranty for minimum power output       Electrical Characteristics,Mechanical Characteristics and Temperature Coefficient Features

ITEM NO.:	Poly 156*156 cell ,36pcs . Power range from 10Wp-15Wp
Maximum Power(W)	5
Optimum Power Voltage(Vmp)	17.6
Optimum Operatige Current(Imp)	0.285
Open Circuit Voltage(Voc)	21.2
Short Circuit Current(Isc)	0.318
Solar Cell:	156*156 Poly. Poly-Crystalline 156*1/24
Number of Cell(pcs)	2*18(36)
Brand Name of Solar Cells	JA Cell, Bluesun Cell
Size of Module(mm)	300*200*20
Caple & Connector Type	Pass the TUV Certificate
Frame(Material Corners,etc.)	Aluminium-alloy
Backing (Brand Type)	TPT
Cell Efficiency for 150W(%)	15.6%
Weight Per Piece(KG)	0.65kg
FF (%)	70-76%
Junction Box Type	Pass the TUV Certificate
Tolerance Wattage(e.g.+/-5%)	±3%, or 0-3%
Front Glass Thikness(mm)	3.2
Temperature Coefficients of Isc(%)	+0.04
Temperature Coefficients of Voc(%)	-0.38
Temperature Coefficients of Pm(%)	-0.47
Temperature Coefficients of Im(%)	+0.04
Temperature Coefficients of Vm(%)	-0.38
Temperature Range	-40°C to +85°C
Surface Maximum Load Capacity	2400Pa
Allowable Hail Load	23m/s ,7.53g
Bypass Diode Rating(A)	12
Warranty	90% of 10 years,80% of 25 years.
Standard Test Conditions	AM1.5   1000W/ 25 +/-2°C
Packing	carton or pallet
1*20'	200Pallets / 5000Pcs
1*40'STD	200Pallets / 10000pcs

              If it's convenient for you , welcome to visit our factory .   Any question , please feel free to let me know . My skype is srsolar04 , my trademanager is cn1500136335.
