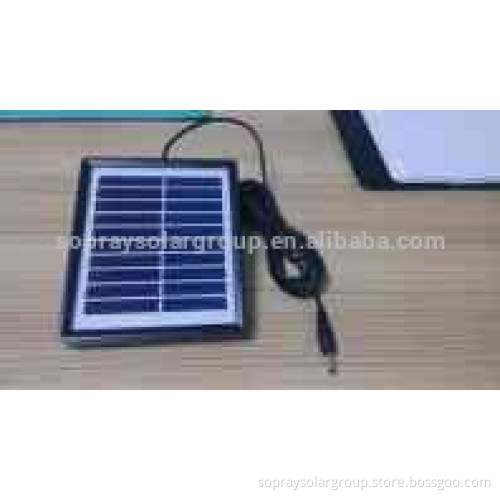

Low price small solar modules 5v 1w mini solar panels

                                Low price small solar modules 5v 1w mini solar panels   Features: Condition:Brand&New Material: crystalline silicon solar panel Size: 80*85mm DC voltage: 5.0v-6v Current: 130mA~160mA PET laminated   1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance 3. Unique frame design with high mechanical strength for easy Installation.
4 Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest environmental conditions
6. Outstanding electrical performance under high temperature and low irradiance conditons
    Solar cells applications:
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Residential roof-top systems
4. Any commercial or industrial ground mount systems
5. Other industrial or commercial applications

Solar panel quality and warranty:
1. Peak power of single module in guaranteed in +-3%power tolerance.
2. Average power of modules in single order is guaranteed not less than the peak power
3. Rigorous quality control meets the highest international standard
5.5 years limited warranty on material and workmanship
6.10 years and 20 years limited warranty for minimum power output       Electrical Characteristics,Mechanical Characteristics and Temperature Coefficient Features

ITEM NO.:	Poly 156*156 cell ,36pcs . Power range from 120Wp-160Wp
Maximum Power(W)	120	125	130	135	140	145	150	155	160
Optimum Power Voltage(Vmp)	17.45	17.61	17.75	18.84	17.96	18.11	18.25	18.40	18.51
Optimum Operatige Current(Imp)	7.01	7.17	7.41	7.63	7.85	8.06	8.31	8.52	8.68
Open Circuit Voltage(Voc)	21.72	21.79	21.84	21.95	22.05	22.14	22.20	22.26	22.32
Short Circuit Current(Isc)	8.76	8.87	9.04	9.15	9.24	9.35	9.47	9.59	9.71
Solar Cell:	156*156 Poly
Number of Cell(pcs)	4*9
Brand Name of Solar Cells	JA Cell, Bluesun Cell
Size of Module(mm)	1460*660*35
Caple & Connector Type	Pass the TUV Certificate
Frame(Material Corners,etc.)	Aluminium-alloy
Backing (Brand Type)	TPT
Cell Efficiency for 150W(%)	15.6%
Weight Per Piece(KG)	13.5KG
FF (%)	70-76%
Junction Box Type	Pass the TUV Certificate
Tolerance Wattage(e.g.+/-5%)	±3%, or 0-3%
Front Glass Thikness(mm)	3.2
Temperature Coefficients of Isc(%)	+0.04
Temperature Coefficients of Voc(%)	-0.38
Temperature Coefficients of Pm(%)	-0.47
Temperature Coefficients of Im(%)	+0.04
Temperature Coefficients of Vm(%)	-0.38
Temperature Range	-40°C to +85°C
Surface Maximum Load Capacity	2400Pa
Allowable Hail Load	23m/s ,7.53g
Bypass Diode Rating(A)	12
Warranty	90% of 10 years,80% of 25 years.
Standard Test Conditions	AM1.5   1000W/ 25 +/-2°C
Packing	carton or pallet
1*20'	20 Pallets / 250pcs
1*40'STD	20 Pallets / 500pcs
