high efficiency best price per watt 300 watt monocrystalline solar panels for sale
- Delivery Time:
- 15 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | Guangdong, China (Mainland) |
---|
Product Description
Product Description

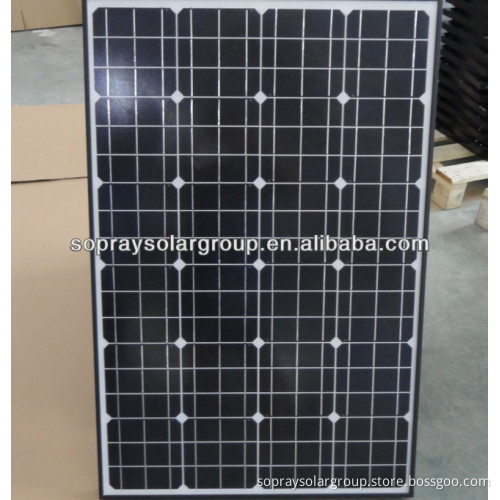

high efficiency best price per watt 300 watt monocrystalline solar panels for sale Materials of solar panel 1).Solar Cell------monocrystalline solar cell 125*125mm 2).Front Glass-------3.2mm, high transmission, low iron, tempered glss 3).EVA-------excellent anti-aging EVA 4).TPT-------TPT hot seal made of flame resistance 5).Frame------anodised aluminum profile 6).Junction Box-------lp54 rated, high quality, with diode protection Superiority: high quality anodexed aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resisance. Features 1. High cell efficiency with quality silicon materials for long term output stability 2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures 3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance 4. Both Polycrystalline and Monocrystalline 5. Excellent performance in harsh weather 6. Outstanding electrical performance under high temperature and low irradiance Example parameters for your information
chinese solar panels ,solar module , pv solar panel , china solar for sale ; (Please note we can provide you all size all kind solar panel for home use , pls freely contact me anytime , the following shows only one type of product,)
chinese solar panels ,solar module , pv solar panel , china solar for sale ; (Please note we can provide you all size all kind solar panel for home use , pls freely contact me anytime , the following shows only one type of product,)
MONO/POLY | Mono/poly | Mono/poly | Mono/poly | Mono/poly | Mono | Mono |
Maximum power (Wp) | 270Wp | 280Wp | 290Wp | 300Wp | 305Wp | 310Wp |
Maximum power voltage (V) Vmp | 35.50 | 35.80 | 36.00 | 36.20 | 36.50 | 36.80 |
Maximum power current (A) Imp | 7.60 | 7.82 | 8.05 | 8.28 | 8.36 | 8.42 |
Open circuit voltage (V) Voc | 42.60 | 42.96 | 43.20 | 43.45 | 43.80 | 44.16 |
Short circuit current (A) Isc | 8.29 | 8.53 | 8.80 | 8.95 | 9.10 | 9.18 |
Cell Efficiency (%) | 16.00% | 16.50% | 17.00% | 17.50% | 18.00% | 18.50% |
Number of cells (Pcs) | 72(6*12) | |||||
Size of cell (mm) | 156*156 | |||||
Size of module (mm) | 1950×990×45mm | |||||
Maximum system voltage (V) | 1000V | |||||
Temperature coefficients of Isc (%) | + 0.1/ °C | |||||
Temperature coefficients of Voc (%) | -0.38/ °C | |||||
Temperature coefficients of Pm (%) | -0.47/ °C | |||||
Temperature coefficients of Im (%) | +0.1/ °C | |||||
Temperature coefficients of Vm (%) | -0.38/ °C | |||||
Temperature Range | `-40C------+85C | |||||
Surface Maximum Load Capacity | 60m/s(200kg/sq.m) | |||||
Allowable Hail Load | steel ball fall down from 1m height | |||||
Weight per piece (kg) | 23 | |||||
Junction Box Type | PV-JB001( TUV ) , 6 diodes | |||||
Connectors and Cables Type | With TUV certificate | |||||
Length of Cables (mm) | 900mm | |||||
Output tolerance (%) | -3/+3% | |||||
Frame (Material, Corners, etc.) | Aluminum | |||||
Standard Test Conditions | 1000W/m2 AM1.5 25’C | |||||
Warranty | 5 years product warranty and 25years 80% of power output | |||||
FF (%) | ≥72% | |||||
Quantity of one 20ft container | 240PCS | |||||
Quantity of one 40ft container | 480PCS |
