cheap 125W~155W sun energy solar panels flexible solar panel with price list
  • cheap 125W~155W sun energy solar panels flexible solar panel with price list
  • cheap 125W~155W sun energy solar panels flexible solar panel with price list
  • cheap 125W~155W sun energy solar panels flexible solar panel with price list
cheap 125W~155W sun energy solar panels flexible solar panel with price list
cheap 125W~155W sun energy solar panels flexible solar panel with price list
cheap 125W~155W sun energy solar panels flexible solar panel with price list

cheap 125W~155W sun energy solar panels flexible solar panel with price list

Delivery Time:
10 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description

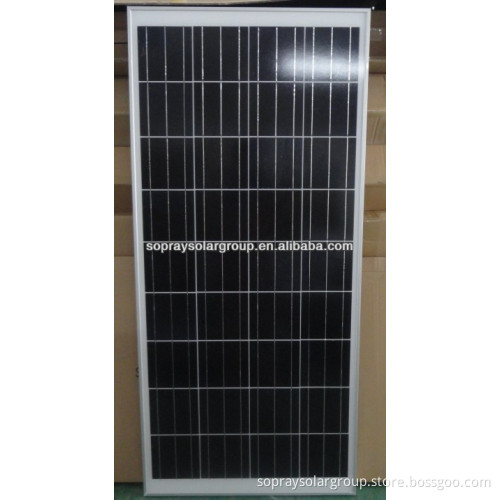

   cheap 125W~155W sun energy solar panels flexible solar panel with price list   Materials of solar panel    1).Solar Cell------monocrystalline solar cell 125*125mm   2).Front Glass-------3.2mm, high transmission, low iron, tempered glss   3).EVA-------excellent anti-aging EVA   4).TPT-------TPT hot seal made of flame resistance   5).Frame------anodised aluminum profile   6).Junction Box-------lp54 rated, high quality, with diode protection   Superiority: high quality anodexed aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resisance.

  chinese solar panels ,solar module , pv solar panel , china solar  for sale ;    (Please note we can provide you all size all kind solar panel for home use , pls freely contact me anytime , the following shows only one type of product,)
MONO/POLY Poly Poly Poly or Mono Poly or Mono Poly or Mono Mono Mono
Maximum power (Wp)  125Wp 130Wp 135Wp 140Wp 145Wp 150Wp 155Wp
Maximum power voltage (V)  17.40 17.60 17.80 18.00 18.20 18.30 18.50
Maximum power current (A)  7.18 7.38 7.58 7.78 7.97 8.19 8.38
Open circuit voltage (V)  21.60 21.80 22.00 22.20 22.30 22.40 22.60
Short circuit current (A)  7.75 7.97 8.18 8.40 8.60 8.85 9.04
Cell Efficiency (%)  15.00% 15.50% 16.00% 16.50% 17.00% 17.50% 18.00%
Number of cells (Pcs)  36
Size of cell (mm) 156*156
Size of module (mm) 1480*670*35
Maximum system voltage (V)   1000V
Temperature coefficients of Isc (%) + 0.1/ °C
Temperature coefficients of Voc (%) -0.38/ °C
Temperature coefficients of Pm (%) -0.47/ °C
Temperature coefficients of Im (%) +0.1/ °C
Temperature coefficients of Vm (%) -0.38/ °C
Temperature Range  `-40C------+85C
Surface Maximum Load Capacity 60m/s(200kg/sq.m)
Allowable Hail Load  steel ball fall down from 1m height
Weight per piece (kg) 12
Output tolerance (%)  -0/+3%
Frame (Material, Corners, etc.)  Aluminum
Standard Test Conditions   1000W/m2  AM1.5  25’C
Warranty  5 years product warranty and 25years 80% of power output
FF (%) 72%
Quantity of one 20ft container 520  pcs
Quantity of one 40ft HQ container 1144  pcs
  TERMS :    1.All solar cells are A grade mono/poly solar cells.    2.Delivery date: 15 working days ;   3. Payment terms:30% T/T in advance, the rest should be paid before shipping. L/C is also acceptable;   4. 5 years warranty, and 25 years working life;   5:package :  carton , wooden box, metal cabinet pallet and  customized etc     We are professional in making Solar panel ,solar power system and solar application product. 1W~310W high efficiency solar panel,solar module,pv module. mono and poly solar panel.       *********************************************************************************************************************************************
