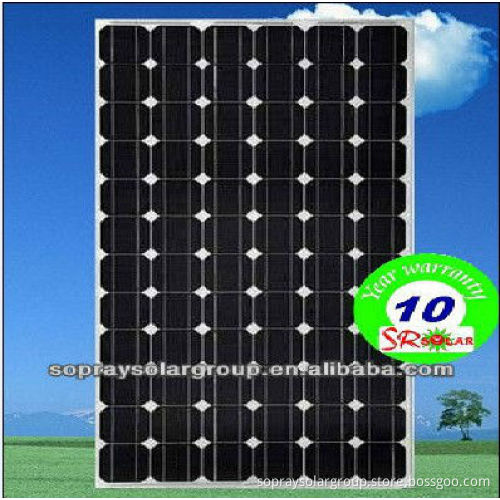

High efficiency mono pv solar panel with low price in China
  • High efficiency mono pv solar panel with low price in China
  • High efficiency mono pv solar panel with low price in China
  • High efficiency mono pv solar panel with low price in China
High efficiency mono pv solar panel with low price in China
High efficiency mono pv solar panel with low price in China
High efficiency mono pv solar panel with low price in China

High efficiency mono pv solar panel with low price in China

Delivery Time:
7 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
2015 high efficiency mono solar panel with low price in China     (April 2013 a new specification sheet)  :

Nominal

Power

Optimum

Voltage

Optimum

Current

Open

Circuit

Voltage

Short

Circuit

Current

Component

Size

Battery

Cell

Weight

Wp

V

I

V

I

mm

mm

Kg

       5     17.4      0.29     21.8     0.31   306*216*25  62.5*15.625  1.2
     10     17.5      0.58     21.8     0.62   350*306*25  31.25*31.25  2.0
     20     17.5      1.15     21.8     1.24   656*306*25  62.5*31.25  2.8
     40     17.5      2.3     21.8     2.48   630*541*30    125*62.5  5.5
     50     18.5      2.7     22.6     2.9   630*541*30    125*62.5  5.5
     80     17.5      4.58     21.8     4.95  1195*541*30    125*125   8.5
     90     18.1      4.97     22.4     5.36  1195*541*30    125*125   8.5
    100     18.5      5.4     22.6     5.8  1195*541*30    125*125   8.5
    160     35.0      4.58     43.7     4.95  1580*808*35    125*125 15.0
    170     35.6      4.8     44.4     5.15  1580*808*35    125*125 15.0
    175     35.8      4.89     44.8     5.25  1580*808*35    125*125 15.0
    180     36.2      4.97     44.8     5.36  1580*808*35    125*125 15.0
    185     36.2      5.11     45.0     5.51  1580*808*35    125*125 15.0
    190     36.5      5.2     45.0     5.6  1580*808*35    125*125 15.0
    200     25.8      7.75     33.2     8.08  1482*992*40    156*156 19.0
    210     26.5      7.92     33.4     8.38  1482*992*40    156*156 19.0
    220     27.6      7.98     33.6     8.5  1482*992*40    156*156 19.0
    230     29.8      7.73     37     8.22  1640*992*45    156*156 23.0
    240     30.8      7.8     37.6     8.4  1640*992*45    156*156 23.0
    250     31.0      8.0     37.8     8.6  1640*992*45    156*156 23.0
    260     34.8      7.45     44.3     8.02  1952*992*50    156*156 27.0
    270     35.0      7.71     44.6     8.12  1952*992*50    156*156 27.0
    280     35.3      7.93     44.8     8.33  1952*992*50    156*156 27.0
    290     36.4      7.96     45.0     8.45  1952*992*50    156*156 27.0
    300     37.5      8.0     45.0     8.6  1952*992*50    156*156 27.0
  Description:   1, The list of electrical performance parameters are for reference only. 2, Product size and materials are supplied according to customer requirements. 3, Nominal power is for standard board components, under the standard test conditions (light intensity 1000W/m2, temperature 25°C, air quality AM = 1.5) measured power.     solar product range:   our factory specialize in solar power system 200w 300w 500w 600w 800w 900w 1KW 1.5kw 2kw 2.5kw 3kw 5kw 8kw 10kw 20kw 30kw 50kw 60kw 100kw 0.5mw 1mw  off-grid solar power system and on grid solar energy system .    Other solar products also can be manufactured in our factory ,such as solar street light system , solar lantern light , solar torch , solar rescue light , solar fan , solar water pump and so on .     benefits you can get by replacing carbon with solar energy:   You have become a true environmentalist. Every 1000Wp of PV equipment you use , you will get subsidy for reducing carbon every year , which can help you to enlarge the scale of reducing carbon : we will mail to you 200carbon coins of cash coupon within one year , which means that you have reduced the emission of 200 kilograms of harmful gases . It’s simple : with 1000 carbon coins , we can change new piece of PV equipment for you---1000 carbon coins are be equivalent to 1000RMB. Lastly , we will make public your achievement of reducing carbon and your world ranking on the website.   Export country of our solar power system and other products:    Africa, Arabic ,pakistan, Bengal, Vietnam, south africa and so on      The production line of our factory in Shenzhen:       If it's convenient for you , welcome to visit our factory .   Any question , please feel free to let me know . My skype is srsolar04 , my trademanager is cn1500136335.
