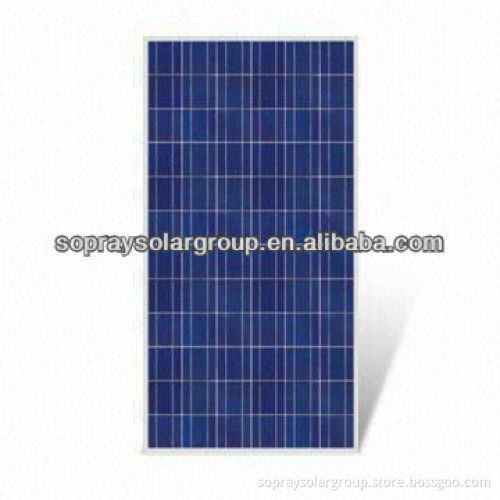

Commercial Application and Normal Specification A grade solar panels with mounting stent

Commercial Application and Normal Specification A grade solar panels with mounting stent      Materials of solar panel    1).Solar Cell------polycrystalline solar cell 156*156mm   2).Front Glass-------3.2mm, high transmission, low iron, tempered glss   3).EVA-------excellent anti-aging EVA   4).TPT-------TPT hot seal made of flame resistance   5).Frame------anodised aluminum profile   6).Junction Box-------lp54 rated, high quality, with diode protection   Superiority: high quality anodexed aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resisance.

Country of Origin: China (mainland) Brand Name: SR Solar Primary Competitive Advantages: Brand-name Parts Country of Origin Distributorships Offered Experienced Staff Green Product Guarantee/Warranty International Approvals Packaging Price Product Features Product Performance Prompt Delivery Quality Approvals Reputation Service Small Orders Accepted Main Export Markets: Eastern Europe North America Mid East/Africa Central/South America Asia Western Europe Australasia

Key Specifications/Special Features: Maximum power at STC (Pmax): 120, 130, 140 and 150Wp Open-circuit voltage: 21.53, 21.6, 22.03, 22.45V Optimum operating voltage (Vmp): 17.57, 17.96, 18.36 and 18.72V Short-circuit current (Isc): 7.35, 7.83, 8.23 and 8.358A Optimum operating current (Imp): 6.83, 7.24, 7.63 and 8.01A Module efficiency: 13.25, 14.35, 15.25 and 16.55% Solar cell efficiency: 13.75, 15.00, 16.00 and 17.25% Number of cells: 72 (12 x 6) pieces Size of cell: 156 x 156mm poly Size of module: 1484 x 669 x 35mm Maximum system voltage: 1,000V Temperature coefficients of Isc: +0.1°C Temperature coefficients of Voc: -0.38°C Temperature coefficients of Pm: -0.47°C Temperature coefficients of Im: +0.1°C Temperature coefficients of Vm: -0.38°C Temperature range: -40 to 85°C Surface maximum load capacity: 60m/s (200kg/m2) Allowable hail load: steel ball fall down from 1m height Weight per piece: 23kg Junction box type: PV-JB001 (TUV) Connectors and cables type: with TUV certificate Length of cables: 900mm Output tolerance: ±5% Made of aluminum Standard test conditions: 1,000W/m2, AM1.5, 25°C 2 years product warranty and 25 years 80% of power FF: ≥73% Payment Details: Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T) Minimum Order: 6 Pieces Delivery Details: FOB Port: Shenzhen Lead Time: 12 - 15 days
