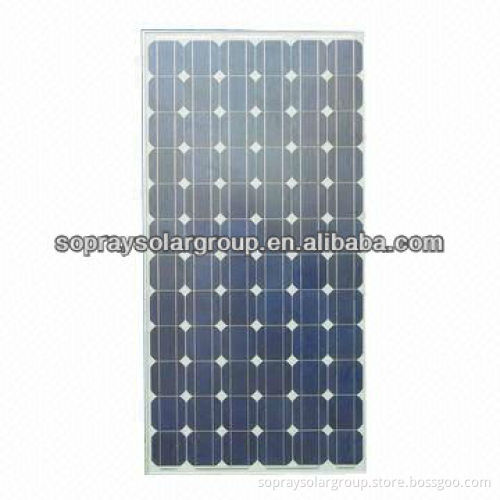

hot selling transparent 200 w mono solar panel

    hot selling transparent 200 w mono solar panel and manufacturing machine   Materials of solar panel  1).Solar Cell------monocrystalline solar cell 125*125mm 2).Front Glass-------3.2mm, high transmission, low iron, tempered glss 3).EVA-------excellent anti-aging EVA 4).TPT-------TPT hot seal made of flame resistance 5).Frame------anodised aluminum profile 6).Junction Box-------lp54 rated, high quality, with diode protection Superiority: high quality anodexed aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resisance.

Country of Origin: China (mainland) Brand Name: SR Solar Primary Competitive Advantages: Brand-name Parts Country of Origin Distributorships Offered Experienced Staff Green Product Guarantee/Warranty International Approvals Packaging Price Product Features Product Performance Prompt Delivery Quality Approvals Reputation Service Small Orders Accepted Main Export Markets: Eastern Europe North America Mid East/Africa Central/South America Asia Western Europe Australasia

Key Specifications/Special Features: Item numbers: SR125M-160, SR125M-170SR125M-180, SR125M-190, SR125M-200 and SR125M-220 Mono: supported Maximum: 160, 170, 180, 190, 200, 210 and 220Wp Open-circuit voltage (Voc): 42.8, 43.6, 44.2, 45, 45.5 and 46.0V Optimum operating voltage (Vmp): 35.5, 35.8, 36.8, 37.2, 37.6 and 38.0V Short circuit current (Isc): 5.15, 5.25, 5.35, 5.5, 5.73 and 5.95A Optimum operating current: 4.51, 4.76, 4.9, 5.10, 5.31 and 5.52A Module efficiency: 14.25, 15.00, 16.00, 16.80, 17.25 and 18.50% Solar cell efficiency: 15.00, 15.75, 16.75, 17.5, 18.50 and 19.20% Number of cells: 72 pieces (6 x 12) Size of cell: 125 x 125mm (mono) Size of module: 1,580 x 808 x 46mm Maximum system voltage: 1,000V Temperature coefficients of Isc (%): +0.1/°C Temperature coefficients of Voc (%): -0.38/°C Temperature coefficients of Pm (%): -0.47/°C Temperature coefficients of Im (%): +0.1/°C Temperature coefficients of Vm (%): -0.38/°C Temperature range: -40 to 85°C Surface maximum load capacity: 60m/s (200kg/m2) Allowable hail load: steel ball fall down from 1m height Weight per piece: 16kg Junction box type: PV-RH701 (TUV) Connectors and cables type: with TUV certificate Length of cables: 900mm Output tolerance: ±5% Frame material: aluminum Warranty: 2 years product warranty and 25 years 80% of power FF: ≥72%

                                                         Packaging and shipping                     Packaging: Each packed in a good-quality carton box then in a pallet                                                                         Our services         1, Replying your inquiries in 24 working hours     2, Customized design is available, OEM is welcomed.     3, Delivery our goods to our customer all over the world with speed and precision.     4, Offer customer the lowest price with high quality solar panels.
