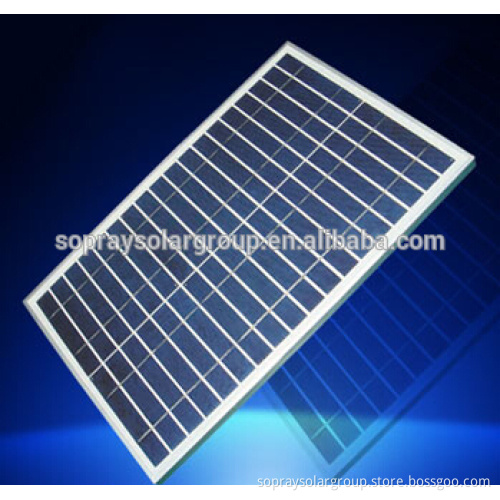

a grade solar cell pv sharp panel sun earth solar panels with top efficiency

     a grade solar cell pv sharp panel sun earth solar panels with top efficiency     Features:   high efficiency solar cell High strength aluminum frame;
High transparency glass;
Powerful production capacity

ITEM NO.	SR70	SR80	SR85	SR90	SR100
Material	Mono	Mono	Mono	Mono	Mono
Maximum power at STC(Pmax)	70Wp	80Wp	85Wp	90Wp	100Wp
Maximum power voltage (V)	18.00V	18.00V	18.00V	18.00V	18.00V
Maximum power current (A)	3.89A	4.44A	4.72A	5.00A	5.55A
Open-circuit voltage (Voc)	21.45V	21.85V	22.05V	22.25V	21.45V
Short-circuit current (Isc)	4.14A	4.88A	5.20A	5.38A	5.88A
Cell Efficiency (%)	13.25%	14.75%	15.65%	16.75%	18.50%
Number of cells (Pcs)	36(4*9)
Size of cell (mm)	125*125mm
Size of module (mm)	1210×540×35mm
Maximum system voltage (V)	1000V DC
Temperature coefficients of Isc (%)	-(0.055±0.01)% /°C
Temperature coefficients of Voc (%)	-(0.34±0.01)%/°C
Temperature coefficients of Pm (%)	-(0.47±0.05)%/°C
Temperature coefficients of Im (%)	+0.1
Temperature coefficients of Vm (%)	-0.38
Temperature Range	-40°C------+85°C
Surface Maximum Load Capacity	60m/s(200kg/sq.m)
Allowable Hail Load	steel ball fall down from 1m height
Weight per piece (kg)	8.5kg
Junction Box Type	PV-RH701( TUV )
Connectors and Cables Type	With TUV certificate
Length of Cables (mm)	900mm
Output tolerance (%)	-0/+3%
Frame (Material, Corners, etc.)	Aluminum
Standard Test Conditions	1000W/m2  AM1.5  25°C
Warranty	8 years product warranty and 25years 80% of power
FF (%)	≥70%
Quantity of one 20ft container	890PCS
Quantity of one 40ft HQ container	1872PCS
