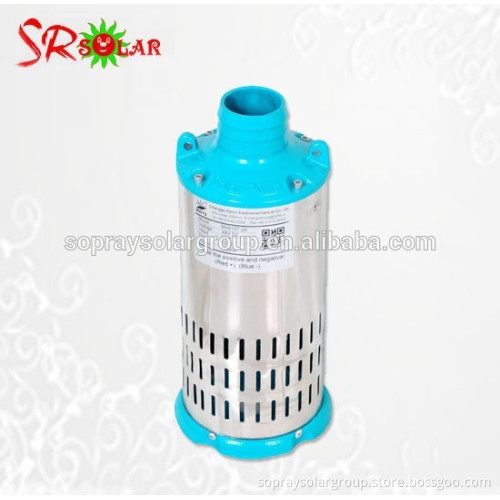

head 10m 20m 50m 100m solar submersible water pump for agriculture

Product Description   solar water pump system, solar submersible water pump for agriculture       Solar water pump    Widely used in agriculture and commercial
Convenient for Drought area   Useful Solar water pump with 5-100m height

VOLTAGE

FLOW RATE

WATER INLET

WATER OUTLET

PROTECTION CLASS

REVOLVING SPEED

THEORY

24V

45L/min

76mm

32mm

IP68

18000(rpm)

Electromagnetic Propulsion



Model	Caryy water height		Solar panels's power		Current	Power	Size	Weight	Standard wiring
									2M
2480-5	5		78		2.5	60	76*275	1.1
2480-10	10		156		5	120	76*405	2.1
2480-15	15		234		7.5	180	76*535	3
2480-20	20		312		10	240	76*665	3.5	Four square standard wiring      5 M
2480-25	25		390		12.5	300	76*795	4
2480-30	30		468		15	360	76*925	4.5
2480-35	35		546		17.5	420	76*1055	5
2480-40	40		624		20	480	76*1185	5.5
2480-45	45		702		22.5	540	76*1315	6
2480-50	50		780		25	600	76*1445	6.5
2480-55	55		858		27.5	660	76*1575	7
2480-60	60		936		30	720	76*1705	7.5
2480-65	65		1014		32.5	780	76*1835	8
2480-70	70		1092		35	840	76*1965	8.5
2480-75	75		1170		37.5	900	76*2095	9
2480-80	80		1248		40	960	76*2225	9.5
2480-85	85		1326		42.5	1020	76*2355	10
2480-90	90		1404		45	1080	76*2485	10.5
2480-95	95		1482		47.5	1140	76*2615	11
2480-100	100		1560		50	1200	76*2475	11.5

  Photos:     Company Information   Our Services
Our principle: To the same product, better price provided; To the same price, better quality provided; To the same quality, then better service provided.   Please contact us, we will guide you step-by-step about choosing the product according to your needs to deliver you the best quality product on very affordable installment rates.

Welcome to visit our factory at any time.
