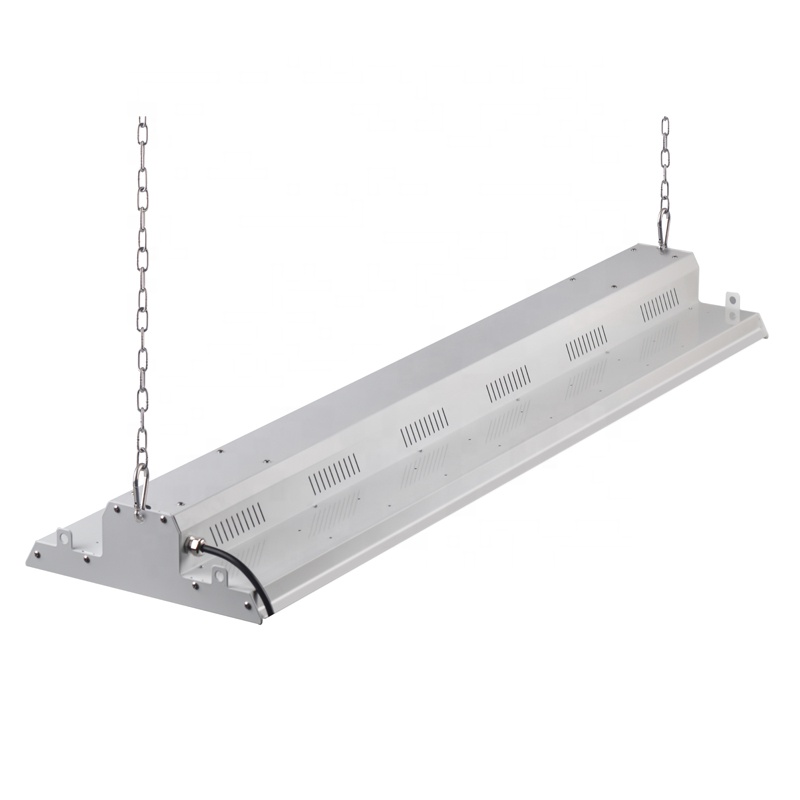

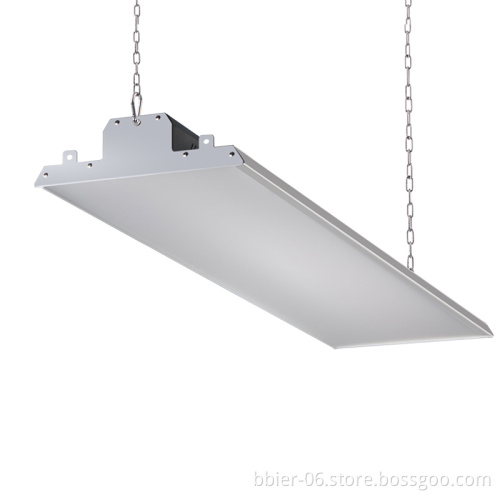

Modern Style Warehouse Remote Control LED High Bay Light for Offices and Living Rooms

Modern Style Warehouse Remote Control LED High Bay Light for Offices and Living Rooms

$99.00

2-499 unit
$98.00

≥500 unit

Min. Order:: 1 unit

Min. Order:: 1 unit

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Western Union,T/T,Paypal

Product Description

Products Description

Benefits

1.Replace conventional linear high bay lights.
2.Precision die cast aluminum housing.
3.Fade resistant powder coat finish.
4.Easy installation.
5.CE ROHS listed.

Features

1.Beam angle : 120 degrees.
2.Aluminum die casting heat sinks is good for heat dissipation.
3.It's major to replace the conventiona high bay light.
4.Green ,energy saving,long and relialble life of 50,000 hours.
5.No RF interference ,no IR / UV radiation,no mercury pollution.
6.Wide colour availability in degrees Kelvin(K),2700-6700K.
7.Streamline exterior design,beautiful appearance.
8.Environment friendly ,energy saving (70%~80%).
9.Special circuit design,each LED work separately,avoiding the single broken LED influence problem.

Power	100W	160W	200W	300W	400W

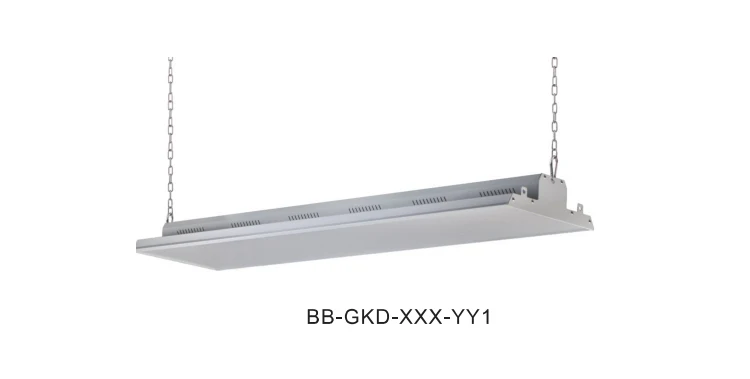

Model	BB-GKD-100W-2F1	BB-GKD-160W-2F1	BB-GKD-200W-4F1	BB-GKD-300W-4F1	BB-GKD-400W-4F1
Replacement	HPS 300W	HPS 400W	HPS 600W	HPS 1000W	HPS 1200W
Luminous Flux	13000lm	20800lm	26000lm	39000lm	52000lm

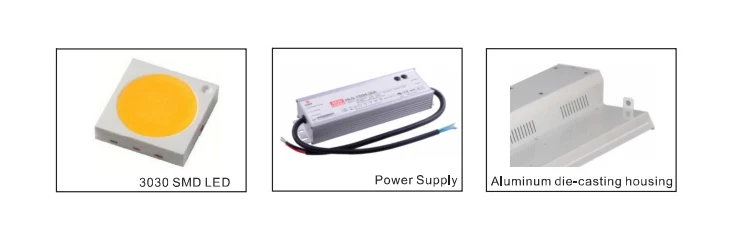

Light Source	SMD LED
Luminous Efficacy	130lm/w
Voltage	100-277VAC/50-60HZ 200-480VAC/50-60HZ available
CRI	80+
Operation Temp.	-40 to +45℃
CCT	3000K WW/4100K NW/5000K DW/5700K CW
Life Span	50,000 hours at 25℃
Dimming	0-10V dimmable optional
Mounting options	Chain
Beam Angle	120°
PF	>0.95
Warranty	5 Years

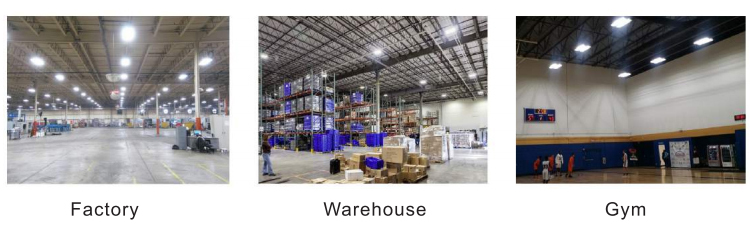

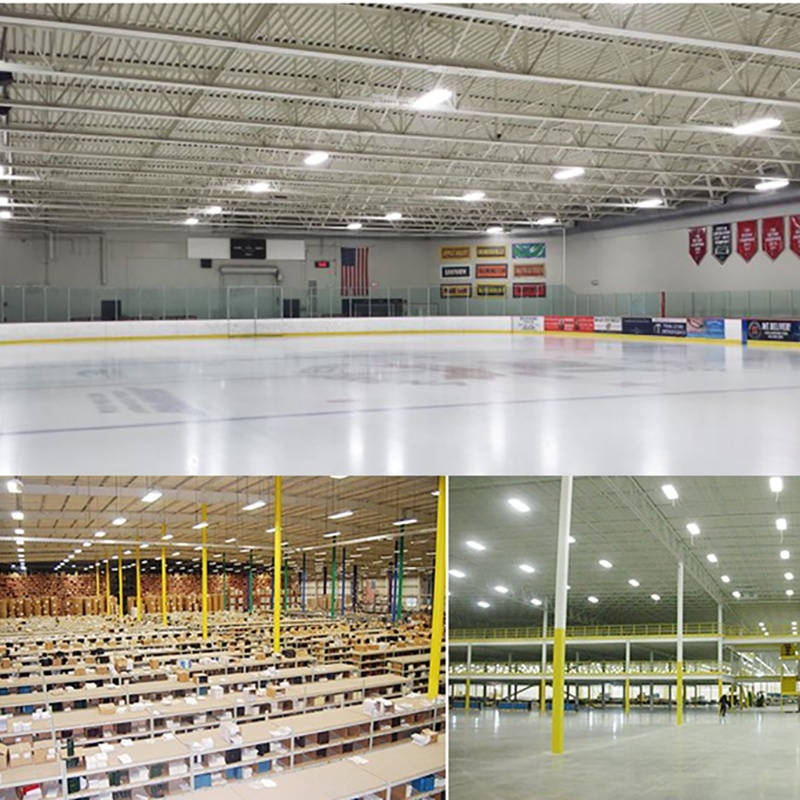

Applications

1.Parking area lighting;
2.Industrial workshop lighting;
3.Warehouse lighting;
4.Stadium lighting.
5.Airport lighting.

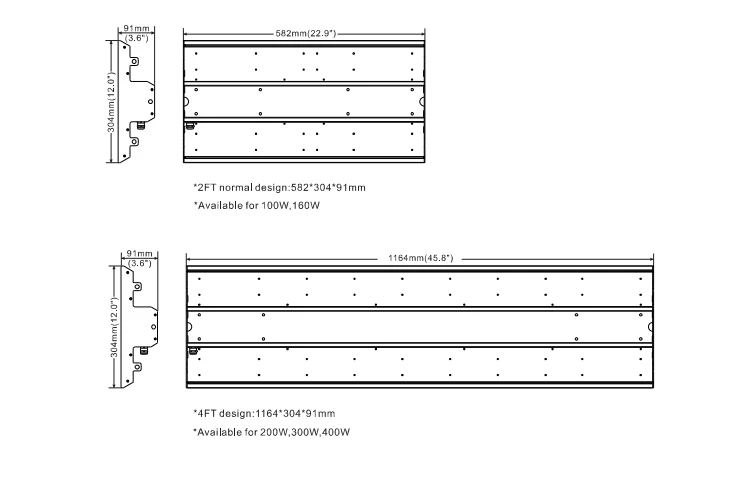

DIMENSIONAL DRAWING

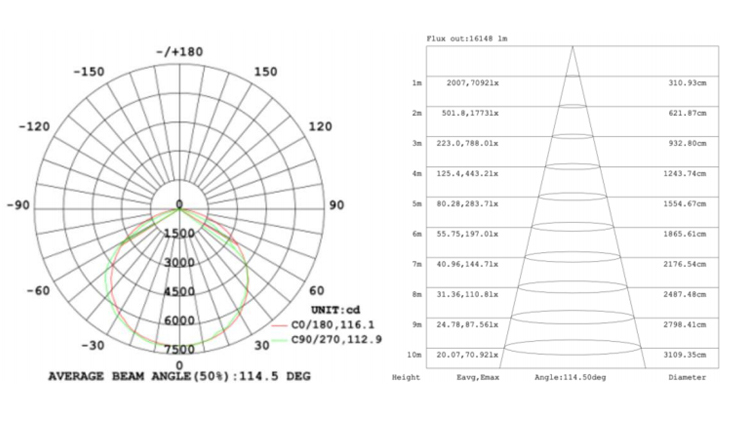

Luminous Intensity Distribution

Projects

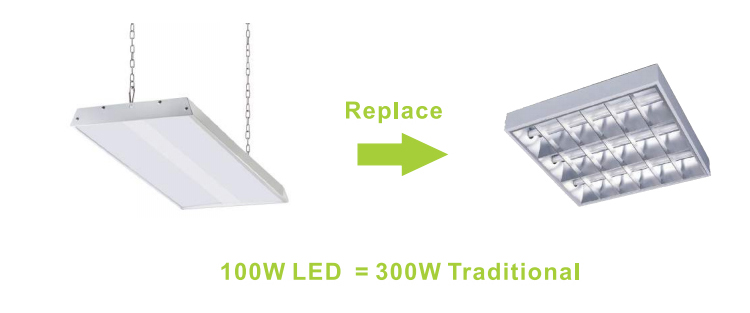

By using our 100w linear high bay light to replace 300w traditional linear lamp, the customer is now able to save a lot per month from his electric bill.

Note

1.Don't take the LED lamp apart.
2.The LED lamp must work under the right voltage according to the specification.es.

Installation

Suspension chain mounting

Step 1:Turn off the power before installation.
Step 2:Hang the two rings of the lamp with two chains.
Step 3:Wiring right("Black" is connected to "L","White" connect to "N","Green" to "Ground").
Step 4:Make sure it is secure and finished.

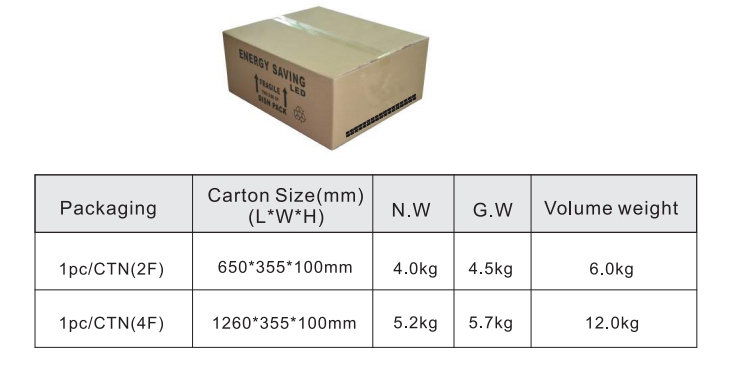

Packing & Delivery
