High Quality IP65 LED Wall Pack Lights for Home

High Quality IP65 LED Wall Pack Lights for Home

$34.90

2-49 piece
$33.50

50-199 piece
$32.80

200-499 piece
$32.50

≥500 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal

Product Description

High quality outdoor lamp led light IP65 wall pack LED wall pack with DLC

High quality outdoor lamp led light IP65 wall pack LED wall pack with DLC wall lights for home

Benefits

1.Replace conventional wall pack light.

2.Internal with heatsink + shading roof design.

3.Streamline design with small size,save shipping cost.

4.Easy installation.

5.ETL CETL DLC SAA TUV CE ROHS listed.

High quality outdoor lamp led light IP65 wall pack LED wall pack with DLC wall lights for home

Features

1.Beam angle:100*100 degrees.

2.Indetnal with heatsink with shading roof design,diecasting house with super great heat dissipation ability.
3.Green ,energy saving,long and relialble life of 50,000 hours.
4.No RF interference ,no IR / UV radiation,no mercury pollution.
5.Wide colour availability in degrees Kelvin(K),2700-6700K.
6.Environment friendly ,energy saving (70%~80%).
7.Intelligent temperature control branded driver used with 5 years long time warranty,aluminum drive house with IP67 waterproof ,and it can fast conduct the heat from the driver to be out.

8.Branded 3030 led used ,high lumen ,long lifetime ,whole lamp over 130lm/w one led broken,all other leds still working.

High quality outdoor lamp led light IP65 wall pack LED wall pack with DLC wall lights for home

Application

1. Building facades lighting.

2. Parking lot lighting.

3. Garages lighting.

4. Sidewalks lighting.
5. Loading areas lighting.
6. Other outdoor places lighting.

High quality outdoor lamp led light IP65 wall pack LED wall pack with DLC wall lights for home

Specifications

High quality outdoor lamp led light IP65 wall pack LED wall pack with DLC wall lights for home

Power	35W	55W	80W	100W
Model	BB-RSD-35-B2	BB-RSD-55-B2	BB-RSD-80-B2	BB-RSD-100-B2
Replacement	HPS 100W	HPS 200W	HPS 300W	HPS 400W
Luminous Flux	4550lm	7150lm	10400lm	13000lm
Light Source	SMD LED
Luminous Efficacy	130lm/w
Voltage	100-277VAC/50-60HZ 200-480VAC/50-60Hz available
CRI	>80
Operation Temp.	-40 to +45℃
CCT	2700K SW/3000K WW/4100K NW/5000K DW/5700K CW
Life Span	50,000 hours at 25℃
Cover	Standard:right-angle PC cover(130lm/w) Special:flat PC cover(170lm/w)
Beam Angle	100° *100°
PF	>0.95
IP	65
Warranty	5 Years

Dimensional Drawing

High quality outdoor lamp led light IP65 wall pack LED wall pack with DLC wall lights for home

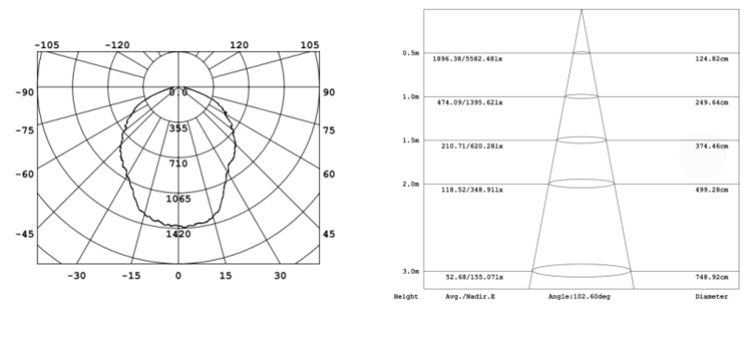

Luminous Intensity Distribution

Installation

Install height from floor higher than 1.2m.

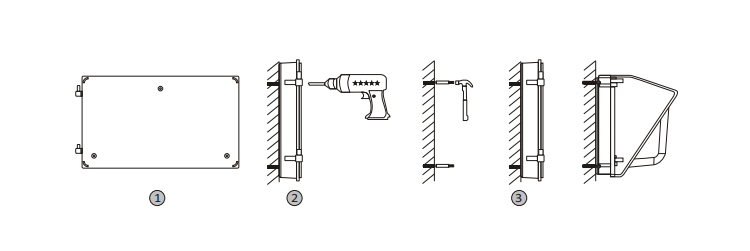

Installation 1
High quality outdoor lamp led light IP65 wall pack LED wall pack with DLC wall lights for home

Step1.Take apart the PC cover and fixture housing.
Step2.Put the fixture on the wall, drill 3 holes to get through the.
Step3.Get expansion screws into the holes, match the fixture to the bolts, then fix the fixture on the wall
by screws lastly get the PC cover and fixture housing back together.

Installation 2

High quality outdoor lamp led light IP65 wall pack LED wall pack with DLC wall lights for home

Step1. Loosen screws and remove the front lens set carefully from the back plate.
Step2. Remove 1/2'' plug from where you intend to feed conduit.
Step3. Drilling out the holes (C) to secure it on the wall with choosing proper screws.
Step4. Finish wiring (Black for line, White for neutral and Green/Yellow Green for ground).
Step5. Replace the lens set on the hinge and finish connection, Close the lens set and tighten the
screws to fasten the lens set to the back plate.

Projects

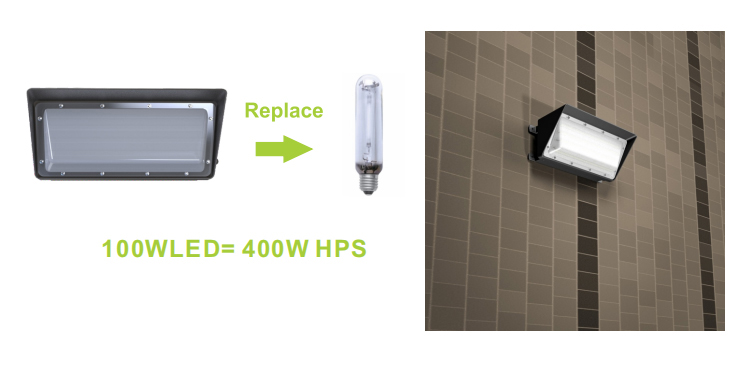

By using our 100w LED wall pack light to replace 400W MH / HPS / HID / LPS ect traditional lamp
fixture for wall pack light,the customer is now able to save a lot per month from his electric bill.

Note
1.Don't take the LED lamp apart.
2.The LED lamp must work under the right voltage according to the specification.

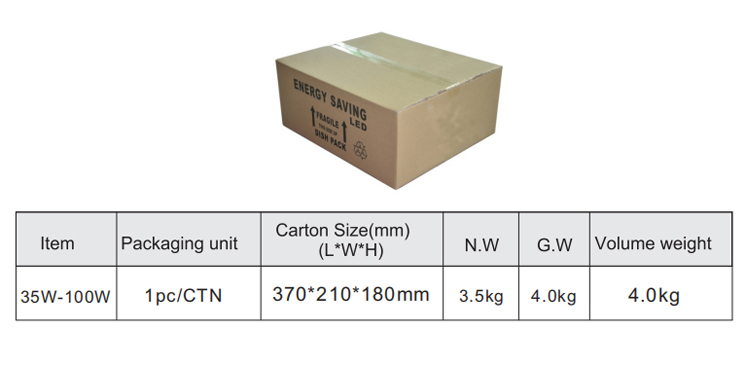

Packing INFO
